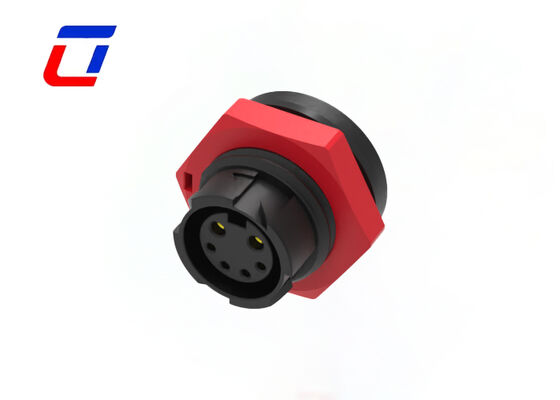

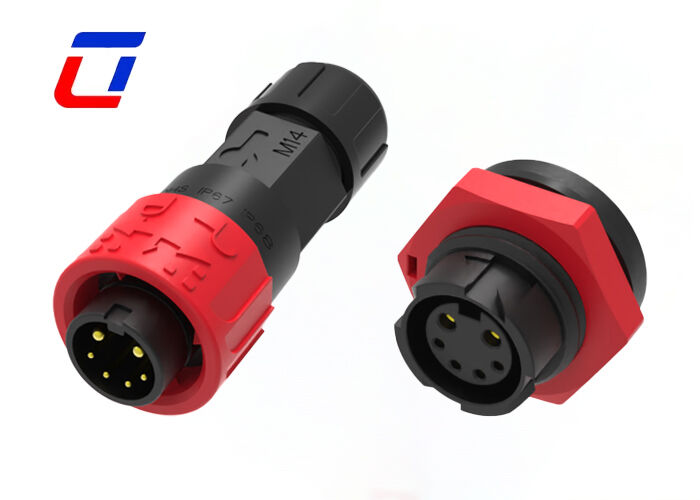

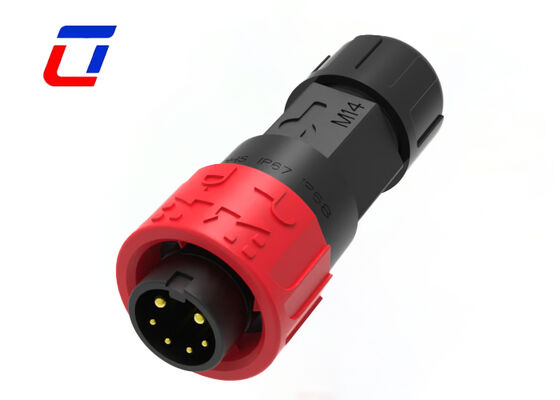

Name: M16 300V Round Connector XLR Waterproof 2+4 Multi Pin Connectors Power Signal Plug
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M16 300V Round Connector XLR Waterproof 2+4 Multi Pin Connectors Power Signal Plug

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Type:	Waterproof Connector	Pin:	2+4pin
Material:	PA66,UL94-V0	Waterproof Level:	IP67
Operating Temperature:	-40℃-+105℃	Contact Material:	Brass Gold-Plated
Highlight:	M16 300V waterproof XLR connector , round multi pin power signal plug , waterproof 2+4 pin XLR connector

M16 300V Round Connector XLR Waterproof 2+4 Multi Pin Connectors Power Signal Plug

Product Overview

M16 2+4 Pin Wire To Board Connector ODM Industrial Power And Signal Plug Socket

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

This is an M16 round XLR waterproof connector with a 2+4 multi-pin structure, supporting synchronous power and signal transmission under 300V. It is waterproof, corrosion-resistant, firmly connected, suitable for complex environments, and a multi-functional practical connection accessory.

Compliant with M16 standard, 300V working voltage adapts to medium and low-voltage equipment. The 2+4 multi-pin (6 pins total) accurately distinguishes power and signal pins to avoid transmission interference and ensure stability.

The XLR interface is smooth to plug and unplug, and the integrated waterproof design can block water vapor and impurities, suitable for harsh environments such as outdoors and dusty areas. High-quality conductive substrate is anti-oxidation, with precise pins and long service life.

Widely used in stage lighting, industrial control, outdoor monitoring, marine electronics and other fields, it can be used as the core component for power and signal connection between equipment, suitable for high-frequency plugging scenarios.

Following industrial-grade standards, it has passed strict quality and voltage resistance tests, with high and low temperature resistance, aging resistance, stable and reliable long-term use, no frequent replacement required.

Balancing practicality and safety, it efficiently solves the needs of synchronous power and signal connection in various complex scenarios.

Technical Specifications

Electrical Parameters

Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications
