Name: M25 Waterproof Aviation Connector Push Pull 300V Multi Pin 2+20 Pin Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M25 Waterproof Aviation Connector Push Pull 300V Multi Pin 2+20 Pin Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Number Of Pins:	22Pin Waterproof Connector
Temperature Range:	-40℃~+105℃	Color:	Red/Blue/Green
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	M25 waterproof aviation connector , 300V multi pin connector , 2+20 pin waterproof connector

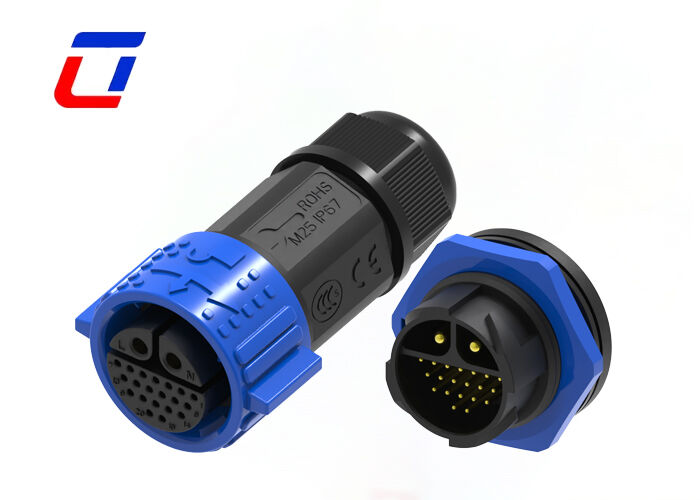

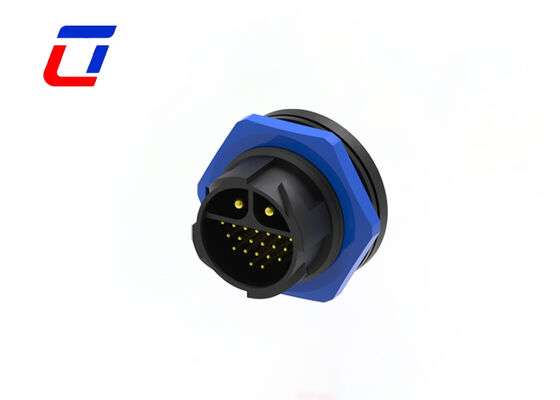

M25 Waterproof Aviation Connector Push Pull 300V Multi Pin 2+20 Pin Connector

Signal and Power Multi Connector Solution

Designed for synchronous transmission of power and multi-channel data in industrial equipment, the M25 2+20 Pin Waterproof Multi-Connector (300V Wire-to-Board Type) features an integrated design that solves complex connection problems in industrial scenarios. With functional partitioning of 2-pin power supply and 20-pin data transmission, combined with M25 high-sealing interface technology, this connector is ideal for outdoor intelligent sorting, large-scale environmental monitoring, industrial robot end effectors, new energy BMS, and other equipment applications.

Advanced Design Features

The M25 circular structure incorporates independent insulating chambers that physically separate the 2-pin power channel from the 20-pin data channel. Rated for 300V operation to meet industrial power requirements, the design eliminates signal interference. The quick-lock docking mechanism requires no tools and achieves automatic locking with one-second insertion for maximum efficiency. This ensures stable power output and accurate multi-channel data collection in harsh outdoor conditions including humidity, dust, and vibration.

Application Industries

Communications Applications
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Main Features

Field assembly version cable to board
Cable assembly service available
Quick lock fast release structure
Waterproof rated for most outdoor applications
Power and signal in one integrated set
2-pin power + 20-pin signal arrangement

Electrical Parameters

Number of Poles	22-pin wire to board connector
Current Rating	20A + 5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

More Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage specifications.

Do you support product customization?

Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
