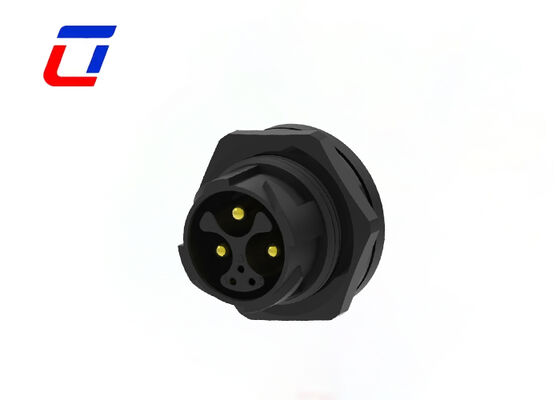

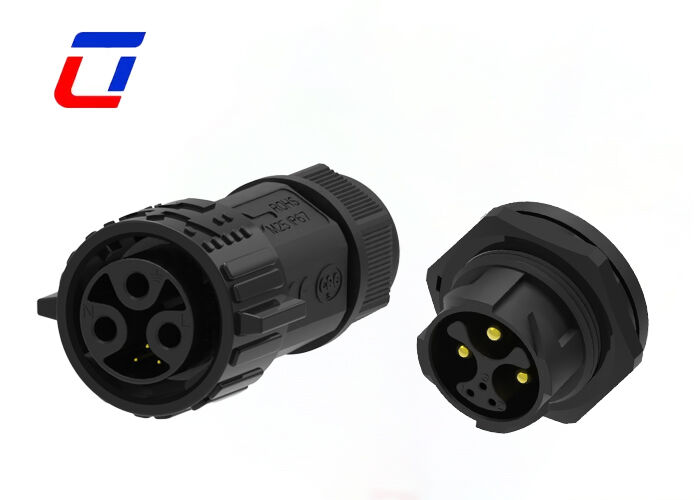

M25 3+3 Pin Reliable PA66 Waterproof Connectors IP67 Panel Mount Circular Connector

Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock Plug Socket

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

The M25 3+3 Pin IP67 Waterproof Quick-Lock Male-Female Connector is engineered for synchronous transmission of "power + signal" in medium and low-power equipment. Featuring a 3+3 pin functional partition design, M25 standard interface, and IP67 protection level, this connector is ideal for applications requiring high signal stability and power supply safety, including smart home control modules, medical monitoring equipment, small new energy storage devices, and outdoor security monitoring systems.

Utilizing an M25 circular structural design with separate 3-pin power circuit and 3-pin signal circuit layout, this connector offers rated voltage of 300V and rated current of 15A, enabling independent and interference-free transmission of power and signal. The quick-lock structure allows for one-second docking, addressing traditional connector challenges of power-signal interference and cumbersome locking operations.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0
