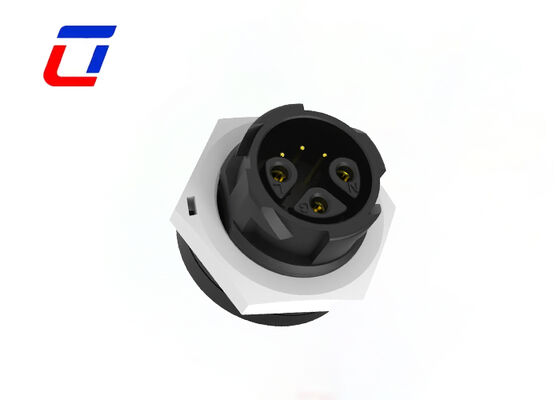

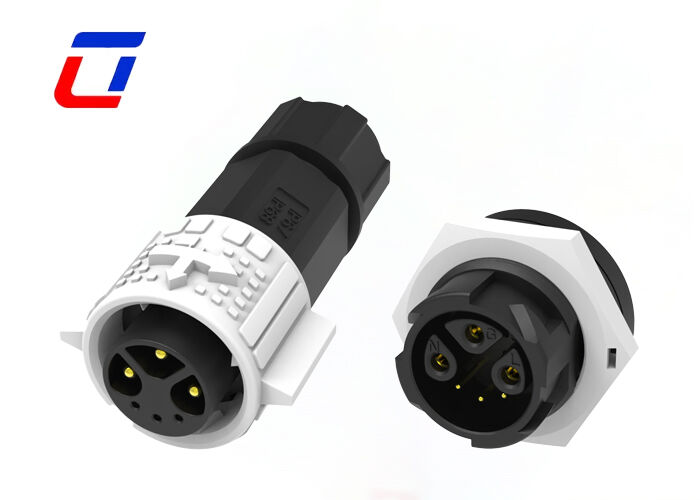

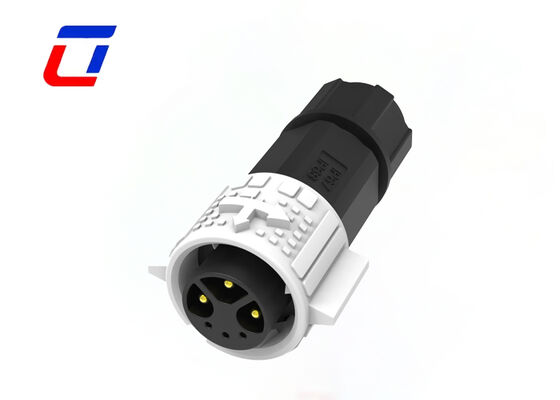

M19 3+3 Pin Watertight Bulkhead Connector

300V Signal and Power Connectors for Industrial Applications

Product Overview

Waterproof Wire To Board Connector M19 3+3 Pin 15A+5A Quick Connector with push-lock quick release system for reliable industrial connections.

Main Features

Push lock quick release system for easy installation
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions for wire-to-wire and wire-to-board applications
20A current rating for continuous operation
Cable assembly services and custom solutions available
OEM/ODM services welcome

Product Description

Ulinkcon M19 3+3 Pin Waterproof Wire to Board Connector is a high-efficiency connection component designed for simultaneous power and signal transmission in industrial equipment. Featuring a threadless self-locking structure and IP67 waterproof protection, it is ideal for harsh environments including outdoor, humid, and high-vibration applications.

The product features a 3+3 pin functional zoning design, supporting parallel transmission of 15A high current and 5A signal current. This meets both power supply requirements and ensures stable control signal transmission for industrial automation, outdoor instruments, security equipment, and other applications.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC/VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	Elastomer Sealed, Hermetically Sealed
Contact Current Rating	15A+5A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Application Industries

Communications Applications
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
