Name: 3+2 Pin Signal And Power Connector M19 Waterproof For Landscape Lighting
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

3+2 Pin Signal And Power Connector M19 Waterproof For Landscape Lighting

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Color:	Black Blue White Red Yellow
Housing Material:	PA66	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof power connector , 3+2 pin signal connector , waterproof landscape lighting connector

3+2 Pin Signal And Power Connector M19 Waterproof For Landscape Lighting

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Power Data Connector

Quick Details of 5Pin Waterproof Connector

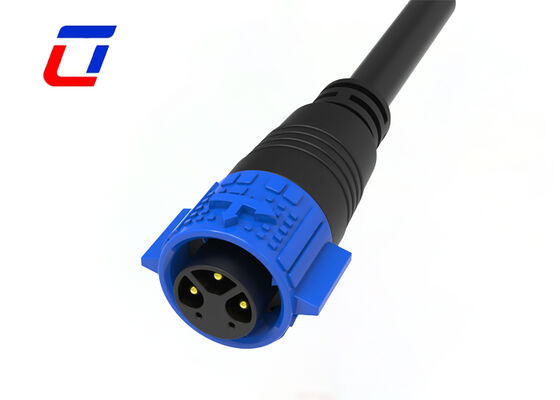

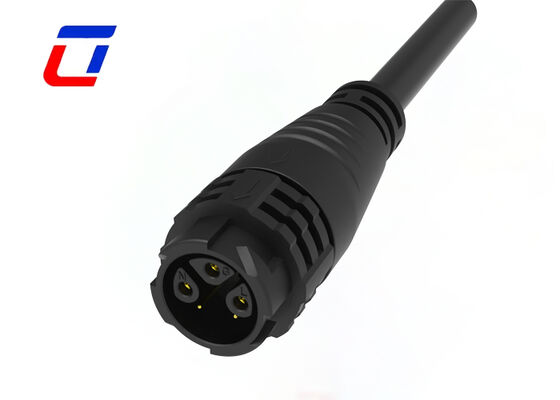

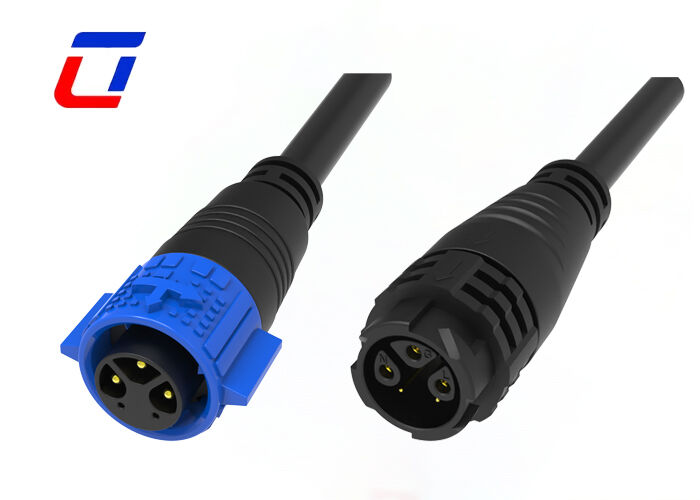

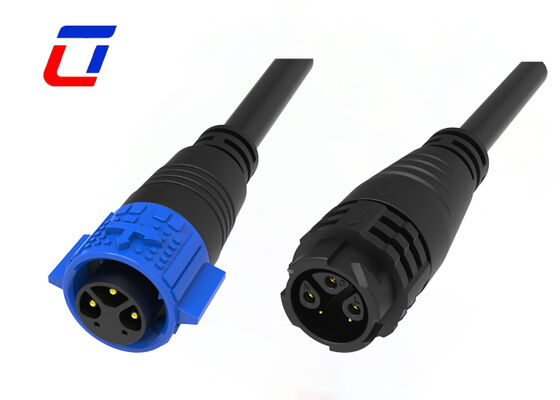

Ulinkcon 3+2 Pin M19 Waterproof Cable Plug Connector is a 2-in-1 power and data connector tailored for low-current scenarios, fully compatible with standard M19 specifications. It adopts a 3+2 composite pin layout to achieve independent and simultaneous power supply and data transmission, serving as an efficient and reliable connection solution for small smart devices in wire-to-wire connection scenarios, suitable for various landscape lighting and small industrial intelligent terminals.

Core Product Advantages

IP67 Dustproof & Waterproof Protection: Boasts IP67 dustproof and waterproof rating, capable of resisting moisture and dust intrusion. It performs stably in complex outdoor environments and industrial auxiliary scenarios, building a solid environmental protection barrier for low-current device connections and preventing transmission failures caused by foreign matter infiltration.
3+2 Composite Pin Layout: Features an independent channel design for composite pins, with 3 pins for power supply and 2 pins for data transmission. The two functions do not interfere with each other, ensuring the accuracy of data transmission while realizing simultaneous operation on a single connector, replacing the traditional split solution.
Weather-Resistant & Durable Materials: The housing is made of high-quality weather-resistant engineering plastics, matched with high-conductivity copper alloy contacts. It offers excellent oxidation and corrosion resistance, adapting to long-term use in outdoor and industrial environments, significantly extending product service life and reducing replacement frequency.
Automatic Locking Stable Structure: Equipped with an automatic locking connection structure, it enhances connection firmness and vibration resistance after mating, effectively avoiding accidental disconnection due to pulling. Meanwhile, it supports tool-free plugging and unplugging for convenient operation and improved work efficiency.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Connector System: Cable-to-Cable Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Electrical Characteristics	Number of Poles: 3+2Pin Current Rating: 15A +5Amax Voltage Rating: 600VAC max Durability Voltage: 2500VAC @ 60 s.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Usage Conditions	Operating Temperature Range: -40 ~ +105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Operation/Application	Durability Rating: 250, 251 cycles
Industry Standards	UL Flammability Rating: UL 94V-0
