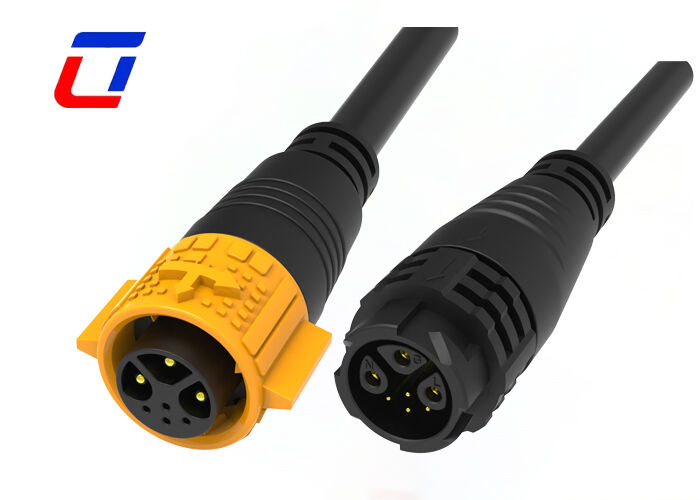

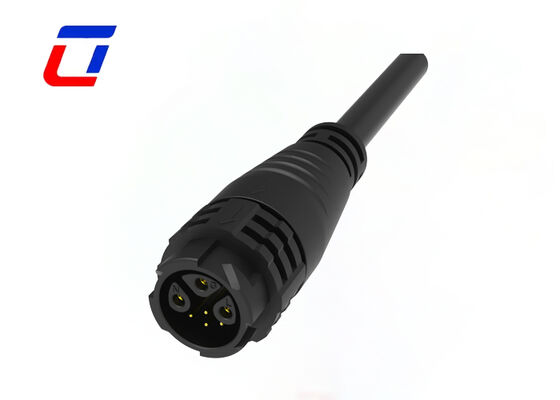

Name: M19 Wire To Wire Connector Types Outdoor 3+4 Pin Waterproof Connector Growth Lights
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 Wire To Wire Connector Types Outdoor 3+4 Pin Waterproof Connector Growth Lights

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Current Rating:	15A
Pin:	3+4Pin	Material:	Nylon
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	M19 waterproof wire connector , 3+4 pin outdoor connector , waterproof connector for growth lights

M19 Wire To Wire Connector Types Outdoor 3+4 Pin Waterproof Connector Growth Lights

Product Overview

The M19 wire-to-wire connector is designed exclusively for outdoor scenarios, adopting a scientific 3+4 pin configuration that precisely meets the dual requirements of power supply and signal transmission for various outdoor equipment.

Technical Specifications

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Key Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 15A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: What is your Minimum Order Quantity (MOQ)?

A: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
