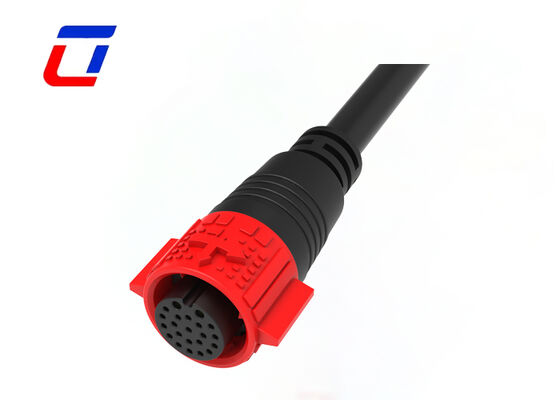

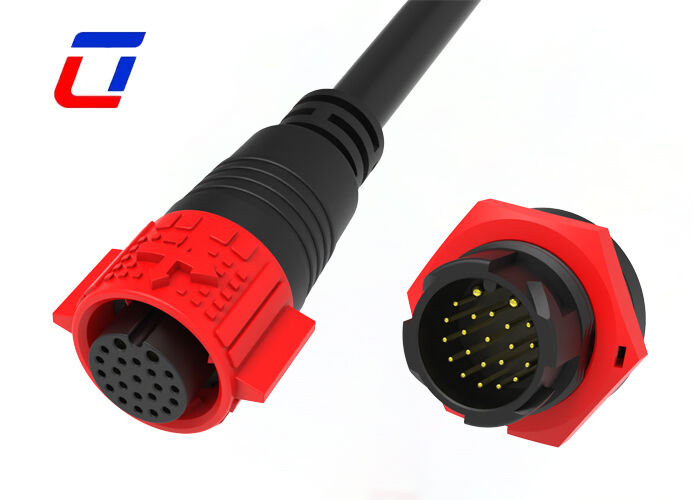

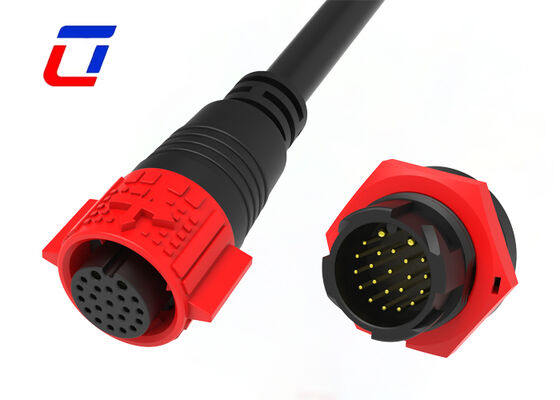

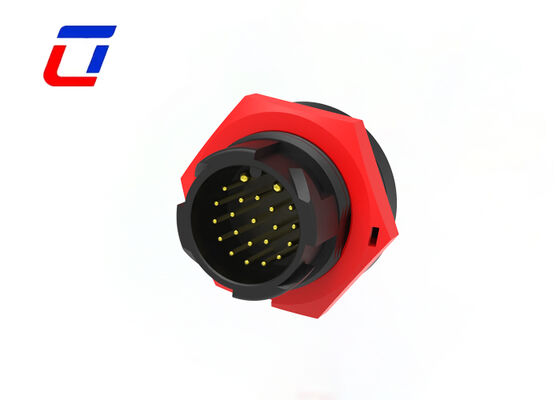

M19 Wire To Board Connector 2 Pin Power And 20 Pin Signal Molded Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Rated Voltage:	300V
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Color:	White Blue Red Black Yellow	Application:	Instruments & Meters
Highlight:	M19 wire to board connector , 2 pin power connector waterproof , 20 pin signal molded cable

M19 Wire To Board Connector 2 Pin Power And 20 Pin Signal Molded Cable Connector

Product Overview

Waterproof Multi 2 Pin For Power Connectors M19 20 Pin Data Connector

Core Specifications & Dual Current Adaptation

This connector features a 2+20Pin multi-pin precision layout with M19 standard circular interface and complete male-female plug-in components. Supporting 15A+5A dual current rating output, it meets different load collaboration needs with precise alignment, stable contact impedance and efficient installation.

High-Level Waterproof Protection

With IP67 waterproof and dustproof performance, it features an integrated sealed housing and high-performance waterproof rubber ring for comprehensive environmental resistance. It eliminates short-circuit and leakage risks during dual current transmission, ensuring stable operation in outdoor, humid and other complex environments.

Secure Male-Female Plug-In Design

The precise snap-on structure auto-locks after insertion, maintaining a firm connection against vibration and external pulling to avoid disengagement. Tool-free unlocking simplifies maintenance and inspection, suitable for scenarios requiring frequent plugging and unplugging.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Electrical Parameters

Parameter	Specification
Number of Poles	2+20pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²
