M19 3+5 Pin Automotive Waterproof Wire Connectors Power Signal Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Pin:	3+5Pin
Connector Type:	Quick Connector	Material:	Nylon
Gender:	Male To Female	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof wire connectors , 3+5 pin automotive connector , waterproof power signal connector

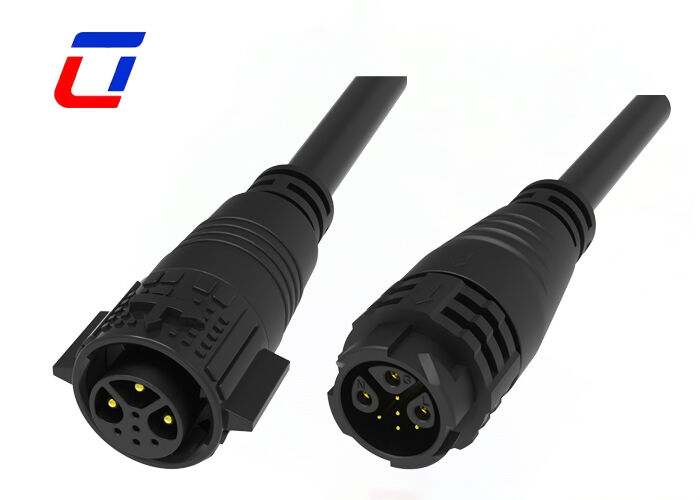

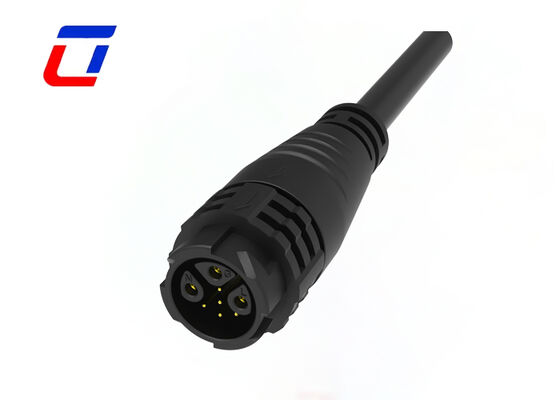

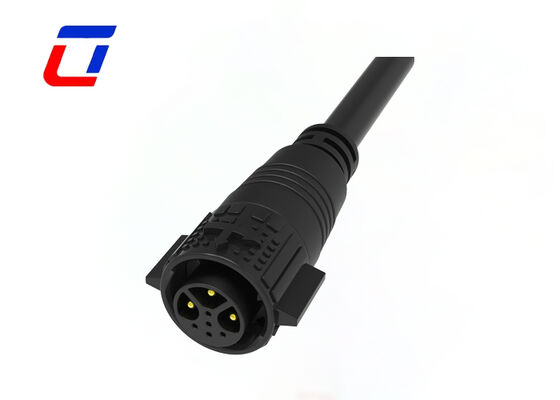

M19 3+5 Pin Automotive Waterproof Wire Connectors Power Signal Connector

Product Overview

The M19 3+5 Pin 15A IP67 Waterproof Circular Data Cable Connector is an industrial-grade component engineered for synchronous power and data transmission. It adopts a zoned layout—3 pins for main power supply and 5 pins for data signals—boasting a 15A high current-carrying capacity and IP67 full-range protection.

Key Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Electrical Parameters

Number of Poles	3+5Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
