Name: M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector Factory
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector Factory

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Type:	Waterproof Connector
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof power connector , 3+2 pin inline connector , push lock signal connector

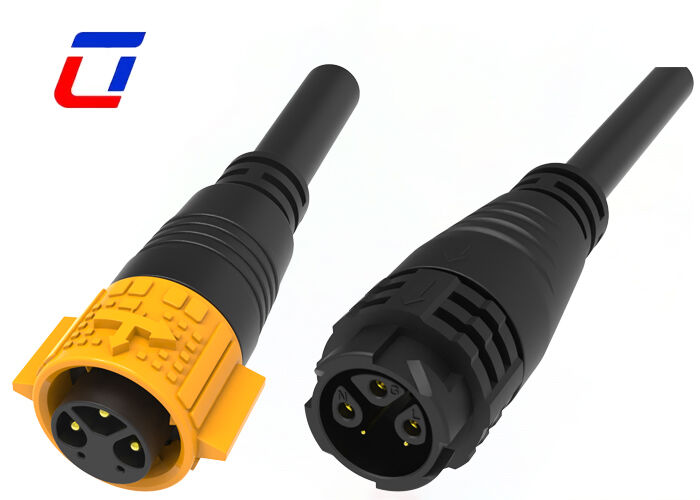

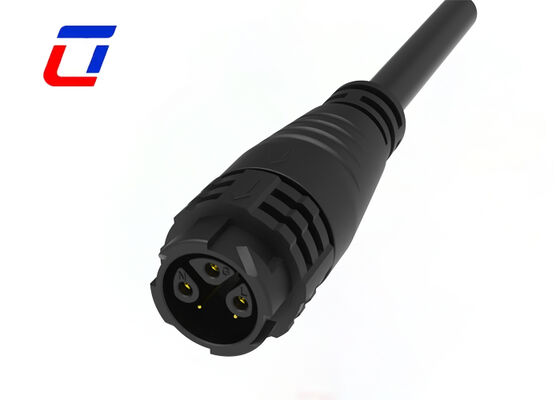

M19 3+2 Pin Inline Waterproof Connector Push Lock Power Signal Connector

Product Overview

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector

Key Features

3+2 Pin Zoned Design: Power-Signal Separation

The 3+2 pin split layout (3 power + 2 data) delivers steady low-current power and smooth high-frequency signal transmission with minimal interference. This structural separation eradicates power fluctuation interference, ensuring reliable dual transmission for low-current scenarios—perfect for sensors and small controllers that demand precision.

Low-Current Tuned for Maximum Reliability

Engineered exclusively for ≤3A applications with gold-plated copper alloy contacts (≤5mΩ resistance) boasting exceptional anti-oxidation and wear resistance for long-term use. Precision-stamped pins create a tight, secure wire fit, eliminating contact issues and signal loss.

M19 Self-Locking: Secure & Weatherproof

The standard M19 self-locking mechanism engages firmly to resist vibration and pulling, preventing accidental disconnections. Combined with high-strength ABS housing and sealing ring, it achieves IP67 dust and splash protection for both indoor and outdoor non-extreme humid environments.

Quick Wire-to-Wire Installation

Compatible with crimping and soldering for 18-24AWG wires. The 3-8mm adjustable cable gland prevents pin loosening, allowing efficient installation for all skill levels.

Technical Specifications

Product Type Features	Connector System: Cable-to-Cable Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Electrical Characteristics	Number of Poles: 3+2 Current Rating: 15A+5A max Voltage Rating: 600VAC max Durability Voltage: 2500VAC @ 60 s.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Usage Conditions	Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Operation/Application	Durability Rating: 250, 251 cycles
Industry Standards	UL Flammability Rating: UL 94V-0

Additional Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Communications Application

Product Coding Machines

Inventory Product Coding

Inkjet Systems

Solar System

Industrial Inkjet Equipment

Electric Power Equipment

Laboratory Forensic & Pathology Equipment

Communications Equipment

Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Tag:

Contact Person: Miss. Gina

Tel: +86 075523019434
