Name: M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector Types
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector Types

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	22Pin Waterproof Connector	Contact Material:	Brass Gold-Plated
Temperature Range:	-40℃~+105℃	Waterproof Rating:	IP67
Application:	Solar Panel	Color:	Red/Blue/Green
Highlight:	M25 Power Signal Connector IP67 , 20+5A Wire To Board Connector , Waterproof Multi Pin Connector

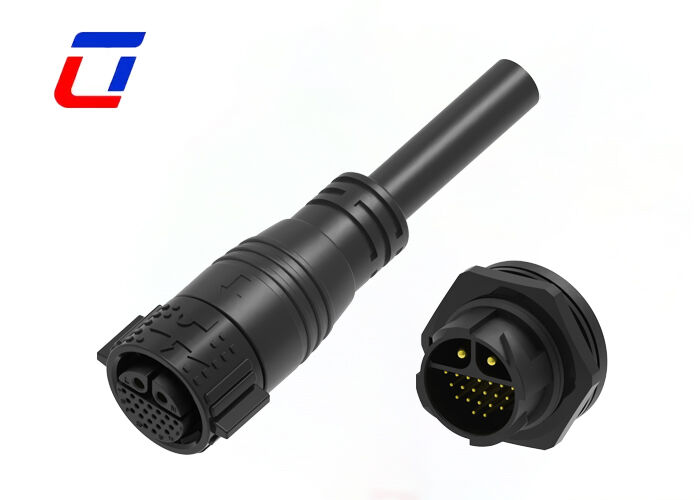

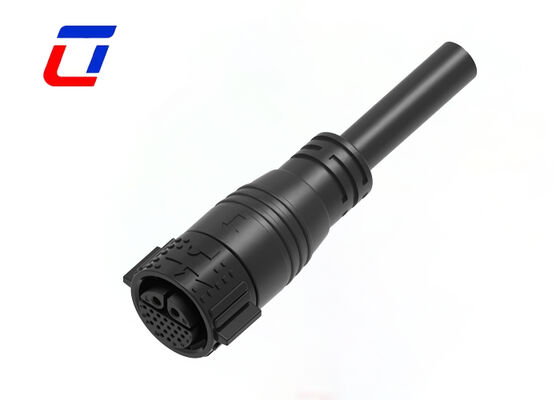

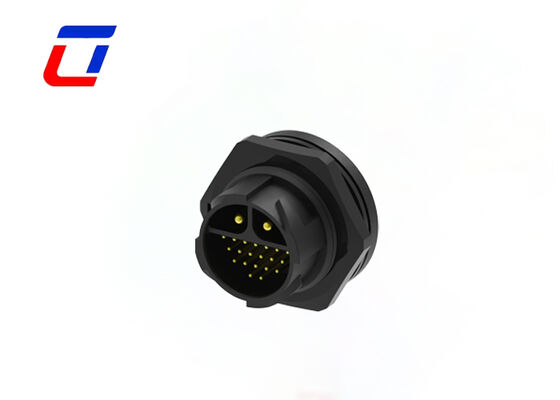

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector

Product Overview

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Key Features

Dual-Circuit 2+20 Pin Layout: Two separate circuits with 2 pins for high-power transmission and 20 pins for multi-channel data signals
M25 Standard Interface with Tool-Free Quick Lock: Push-to-lock mechanism enables one-second installation with automatic vibration-proof connection
Combined Power & Signal Design: Space-saving integration eliminates need for separate connectors
Custom Cable Assembly Solutions: Ulinkcon provides personalized cable assembly services
Reliable Performance in Harsh Environments: Excellent waterproof and dustproof capabilities for outdoor industrial conditions

Application Industries

Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Industrial Inkjet Equipment

Technical Specifications

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A +5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also select materials according to your specific requirements.

How to track my shipment?

Once goods are shipped, we provide tracking numbers and logistics platform links. You can track real-time status online or contact our team for updates.
