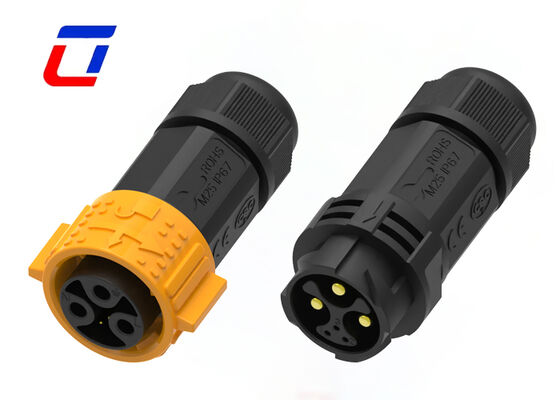

3+3 Pin M25 Signal And Power Connector Plastic PA66 Wire To Wire Plug Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Current:	15A+5A	Temperature Range:	-40℃~+105℃
Material:	PA66	Flame-resistant Rating:	UL94-V0
Highlight:	3+3 pin M25 waterproof connector , PA66 plastic wire to wire connector , M25 signal and power plug

3+3 Pin M25 Signal And Power Connector Plastic PA66 Wire To Wire Plug Connectors

Product Overview

The M25 3+3 Pin Waterproof Connector with IP67 rating is a professional electrical connection component featuring 15A+5A dual current levels and male-female quick lock design. Crafted from high-quality PA66 material, it integrates reliable sealing performance, graded current transmission, and convenient assembly, providing stable and safe connection solutions for scenarios requiring separate power and signal transmission in harsh environments.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Feature Category	Specifications
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Contact Current Rating (Max)	15A + 5A max.
Circular Connector Contact Type	Pin-Socket
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Key Product Benefits

3+3 Pin Dual-Current Design

Equipped with two groups of precision pins (3 pins for 15A power transmission, 3 pins for 5A signal transmission), realizing independent separation of power and signal transmission. It avoids mutual interference, ensures stable operation of high-power components and accurate signal feedback, and meets the needs of complex electrical systems.

M25 Specification & Quick Lock

Adopts standard push lock size, compatible with universal M25 cables and installation interfaces. The male-female quick lock structure enables one-click fastening and disassembly, greatly improving installation efficiency while ensuring firm connection without loosening due to vibration.

IP67 Waterproof Rating

Adopts professional integrated sealing structure, reaching IP67 protection level. It can effectively prevent water immersion (depth ≤1m for 30 minutes), dust, and moisture from entering, maintaining stable performance in rainy, humid, or dusty outdoor/industrial environments.

PA66 Material & Durability

Made of high-grade PA66 (polyamide 66) plastic, it boasts excellent mechanical toughness, wear resistance, and wide temperature adaptability (-40℃ to 105℃). It is resistant to UV radiation, chemical corrosion, and aging, ensuring long service life in harsh working conditions.

Male-Female Pairing Design

Provides complete male and female connector sets, with precise pin and socket fit, low contact resistance, and good electrical conductivity. It effectively prevents poor contact and ensures continuous and stable power/signal transmission.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What is your Minimum Order Quantity (MOQ)?

A2: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
