M25 2+20 Pin Watertight Wire Connectors IP67 Multi Pin Connectors Automotive

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Current:	40A Max.
Number Of Pins:	22Pin Waterproof Connector	Temperature Range:	-40℃~+105℃
Color:	Red/Blue/Green/Black	Housing Material:	Flame-Retardant Plastic
Highlight:	M25 waterproof multi pin connectors , IP67 automotive wire connectors , 2+20 pin watertight connectors

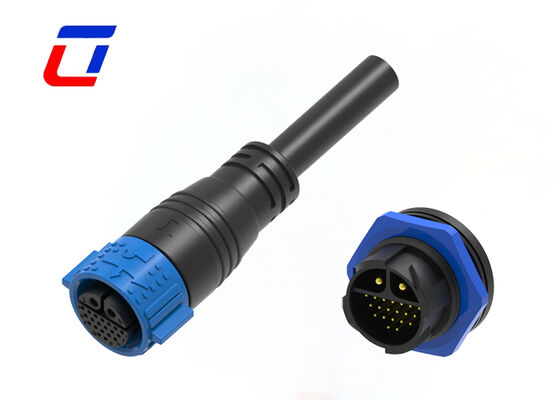

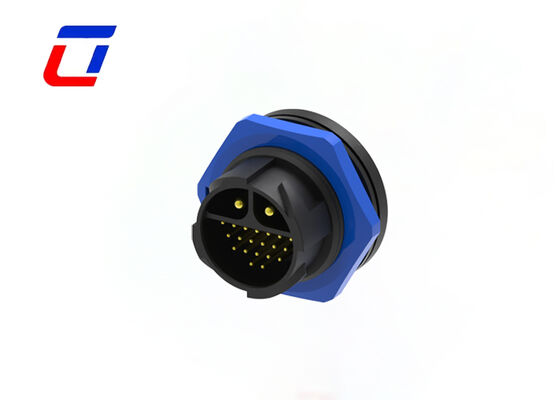

M25 2+20 Pin Watertight Wire Connectors IP67 Multi Pin Connectors Automotive

Product Overview

Signal and power multi connectors M25 2+20 pin waterproof 300 volt wire to board connectors designed for demanding industrial applications.

Key Features & Benefits

Custom cable assembly services available with detailed requirements
Integrated design combining power supply and multi-channel data transmission
Push-lock mechanism for one-second insertion and locking
Sealed interface resistant to humidity, dust, and vibration
Space-optimized design for equipment integration
Field assembly version cable to board
Quick lock fast release structure
Waterproof rated for outdoor applications
Power and signal in one set (2pin power + 20pin signal)

Technical Specifications

Interface Specification	M25 standard circular, 2+20 pin composite design
Rated Voltage	300V with physical isolation between power and data circuits
Connection Method	Quick-lock structure, tool-free docking, auto-locking
Number of Poles	22 pin wire to board connector
Current Rating	20A + 5A
Durability Voltage	2500VAC @ 60 seconds

Technical Parameters

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	40A maximum
Min Wire Size OD	6.5mm - 10mm
Max Wire Size OD	10.5mm - 18mm
Max Cable Cross Section Area	0.5mm² - 6.0mm²

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding
Industrial inkjet equipment
Solar systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Product Configuration

Product Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components may not function properly below their rated voltage.

Q2: How many materials can you provide?

We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also select materials according to your specific requirements.

Q3: Can I have custom labeling?

Yes, you can create your own private label and packaging. If you need packaging design, we have professional designers available to serve you.
