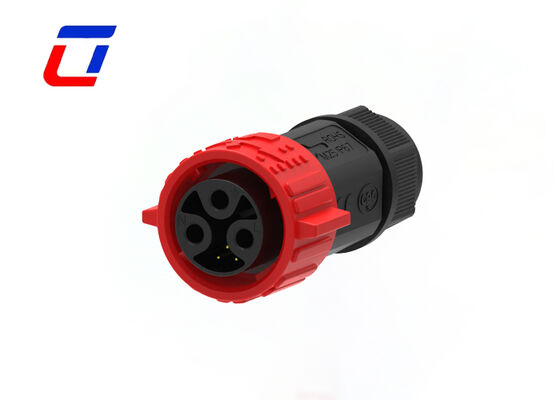

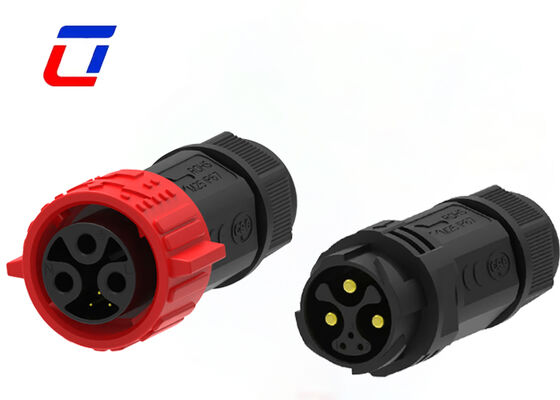

Name: 3+3 Pin M25 IP67 Solar Connectors Wire To Wire Power Signal Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Price: Negotiable USD
Availability: InStock

Home Products Multi Pin Connectors Waterproof

3+3 Pin M25 IP67 Solar Connectors Wire To Wire Power Signal Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Current:	15A+5A	Temperature Range:	-40℃~+105℃
Material:	Nylon	Contact Material:	Brass Gold-Plated
Highlight:	3+3 pin M25 waterproof connector , IP67 solar wire connector , M25 power signal connector

3+3 Pin M25 IP67 Solar Connectors Wire To Wire Power Signal Connector

Waterproof Connector M25 3+3 Pin IP67 15A+5A Male Female Quick Lock Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Specifications

Feature Category	Specifications
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~ 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Key Benefits

Strictly follow industrial-grade production standards, passed multiple professional tests such as waterproof, high temperature resistance, voltage resistance, insulation and vibration, ensuring stable and reliable product performance
Precision mold processing and strict quality control process, ensuring smooth docking of male and female heads, small contact resistance, high transmission efficiency and reducing signal/power loss
The product complies with relevant industry safety standards, has a long service life, and can effectively reduce the frequency of later replacement and maintenance
Interface Specification: M25, adopting 3+3 Pin design to realize independent transmission of multiple signals/power supplies, adapting to differentiated wiring requirements
Rated Current: 15A+5A dual-specification design, matching different power load requirements with stable and reliable power supply
Male Female connection structure, combined with Quick Lock design, featuring firm connection, easy installation and accurate positioning
Core waterproof performance, suitable for various outdoor and harsh environment applications requiring moisture and water resistance

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What is your Minimum Order Quantity (MOQ)?

A2: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

J*s

United States Sep 16.2025

Helpful (1722)

These connectors exceeded my expectations. They’re sturdy, waterproof, and work flawlessly in damp environments. The pre-sale and after-sale support were both fast and helpful. I will be a repeat customer.

O*a

Russian Federation May 5.2025

Helpful (1192)

Перед заказом менеджер подробно проконсультировал нас по техническим характеристикам, помог выбрать подходящую модель и уточнил все нюансы установки. Продукт качественный, соответствует описанию.

M*n

France Metropolitan Apr 3.2025

Helpful (1128)

Nous utilisons ces connecteurs pour des projets d’éclairage extérieur. Leur performance d’étanchéité est excellente, la connexion est stable et durable. Le service avant et après-vente est professionnel et attentif. C’est un fournisseur sérieux que je recommande à tous les professionnels.
