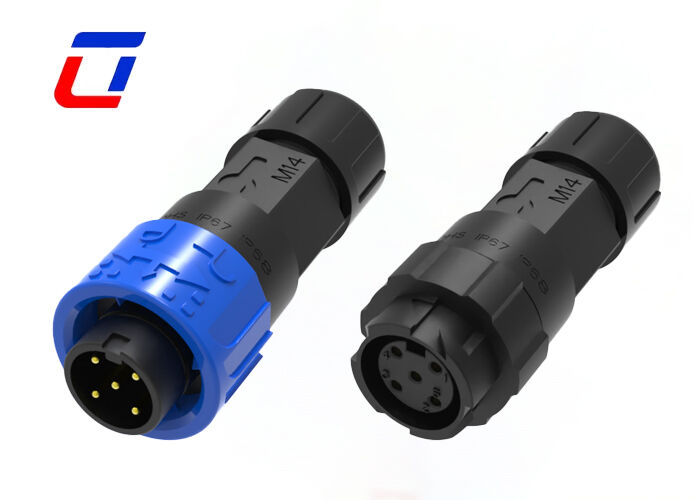

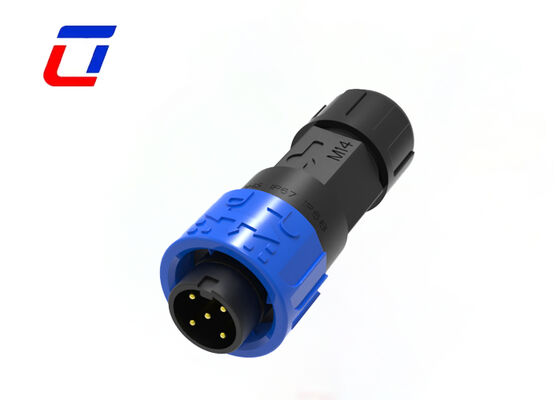

Name: 8A M16 Waterproof 5 Pin Connector Heavy Duty Power Connector Quick Lock
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

8A M16 Waterproof 5 Pin Connector Heavy Duty Power Connector Quick Lock

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Current:	8A Max. For Power
Rated Voltage:	125V	Waterproof Rating:	IP67
Operating Temperature:	-40℃~+105℃	Flame-resistant Rating:	UL94-V0
Highlight:	M16 waterproof power connector , 5 pin quick lock connector , IP67 heavy duty connector

M16 5 Pin 125V Push Lock Waterproof Connector IP67 For Heavy-Duty Applications

8A 5Pin Waterproof Circular Connector, Quick Release Male To Female Wire Connector

M16 5 Pin 125V Push Lock Waterproof Connector (IP67), tailor-made for heavy-duty applications, stands out as the preferred solution for power transmission and signal connection in harsh environments with its excellent structural design and reliable performance. Complying strictly with the M16 interface standard, the product adopts a 5-pin configuration, accurately matching the 125V rated voltage requirement, which can stably carry the power transmission and signal interaction tasks of heavy-duty equipment, ensuring stable current and lossless signal during connection.

The core highlight lies in the innovative push-lock mechanism. Precise docking and firm locking can be achieved with a light press, effectively avoiding connection loosening under complex working conditions such as vibration and impact. At the same time, it enables quick plug-in and pull-out operations, greatly improving installation and maintenance efficiency. The IP67 high protection level endows the product with all-round waterproof and dustproof capabilities, which can completely resist dust intrusion and still work normally when immersed in 1m water depth for 30 minutes. It can easily cope with harsh scenarios such as rain, standing water, dust and humidity, fundamentally reducing the risk of faults such as short circuits and poor contact.

The product is made of high-quality heavy-duty materials. The conductor is made of high-conductivity oxygen-free copper with anti-oxidation treatment on the surface to reduce transmission loss and heat generation; the shell is made of engineering plastic with high insulation level, which has excellent aging resistance, impact resistance and corrosion resistance, and can withstand mechanical wear and environmental erosion during long-term operation of heavy-duty equipment. It is widely applicable to heavy-duty application scenarios such as heavy machinery, industrial automation equipment, outdoor security systems, mining machinery and port equipment, providing all-weather and highly reliable connection guarantee for the stable operation of equipment in various harsh environments.

Key Features

Push-lock quick release system
Multiple core : 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

8A M16 Waterproof 5 Pin Connector Heavy Duty Power Connector Quick Lock 0

Professional Manufacturer

8A M16 Waterproof 5 Pin Connector Heavy Duty Power Connector Quick Lock 1

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

Q2:What is your Minimum Order Quantity (MOQ)?

A2:The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.

Q3: What payment methods do you accept?

A3: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
