Name: 3+2 Pin Male And Female Connectors M19 Multi Pin Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

3+2 Pin Male And Female Connectors M19 Multi Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN	Current:	15A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Type:	Waterproof Connector	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof multi pin connector , 3+2 pin male female connector , waterproof M19 electrical connector

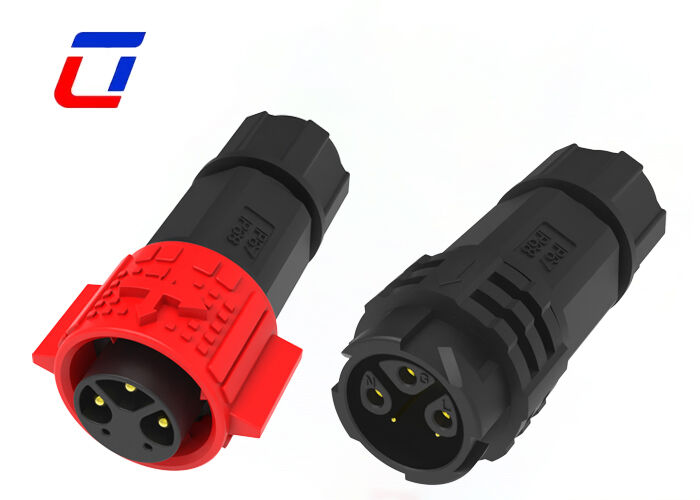

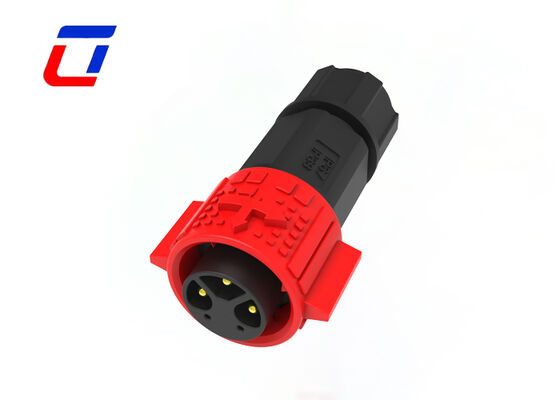

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector

Quick Details of 5Pin waterproof connector

3+2 Pin Zoned Design for Precise Function Separation: 3+2 zoned layout (3 power + 2 data channels) – 3 power pins for stable low-current supply, 2 data pins for high-frequency, low-interference signal transmission. Structural function separation avoids power fluctuation interference, ensuring efficient dual transmission under low-current conditions, suitable for sensors and small controllers.
Low-Current Optimization: Tailored for ≤3A scenarios, high-purity gold-plated copper alloy contacts (≤5mΩ contact resistance) enhance anti-oxidation and wear resistance. Precision-stamped pins ensure tight wire fit, preventing poor contact/signalloss and stabilizing power/data for low-power devices.
M19 Threaded Locking: Standard M19 structure with threaded locking resists vibration/pull to avoid accidental disconnection. High-strength ABS housing + sealing ring achieves IP67 protection (dust/splash resistant), fit for indoor/outdoor non-extreme humid environments.
Easy Wire-to-Wire Installation: Supports crimping/soldering, compatible with 18-24AWG wires. 3-8mm adjustable cable gland prevents pin loosening from wire stress, enabling quick installation for novices and improving wiring efficiency.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Type Features
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Operation/Application
Durability Rating (Cycles)	250, 251
Industry Standards
UL Flammability Rating	UL 94V-0

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:Is there a discount for large - quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

Q3:How to track my shipment?

A3:Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Tag:

Contact Person: Miss. Gina

Tel: +86 075523019434
