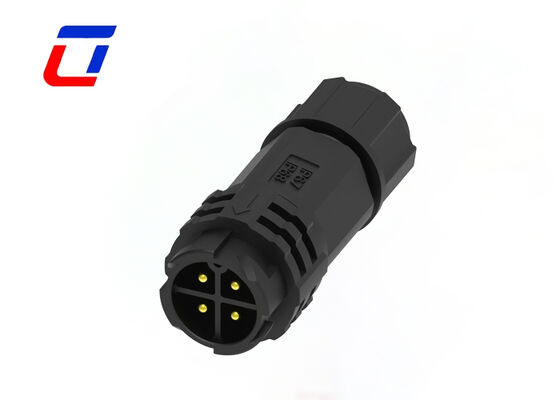

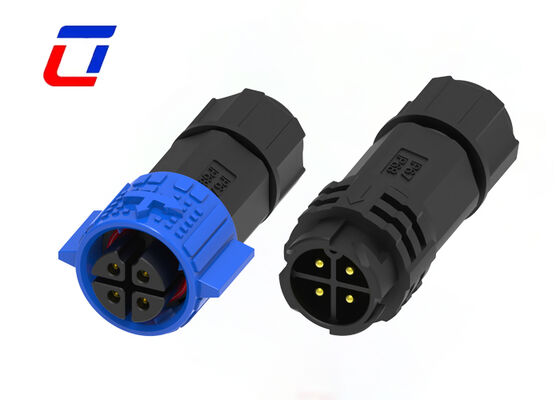

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector
Quick Description
Core Specifications
M19 standard circular structure, 4-pin power transmission channels, 300V rated voltage. Enables precise male-female docking, tailored for industrial-grade power connections, ideal for medium-low voltage system's efficient cable mating needs.
Structure & Craftsmanship
High-weather resistance engineering plastic housing; high-conductivity brass pin cores (precision-processed). Smooth male-female insertion/extraction, professional sealing structure ensures secure connection with excellent anti-vibration and anti-drop performance.
Transmission Performance
300V rated voltage for medium-low voltage power transmission; 4-pin design guarantees current-carrying stability. Low pin contact resistance reduces transmission energy consumption and heat generation, ensuring continuous and reliable equipment power supply.
Application Fields
Widely applied in outdoor power distribution systems, industrial automation equipment power interfaces, new energy outdoor facilities, security monitoring power connections and other power transmission scenarios requiring IP67 protection and male-female pairing.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 15A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters |
| Number of Poles |
4Pin |
| Current Rating |
15A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1000VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
15A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Design Sketch
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
3. Q: How to buy your products?
A: You need to do as followings:
- Confirm Current Rating and Number of Contacts
- Confirm Assembly style
- Confirm Cable Wire guage
- Confirm Cable Length and Material.
