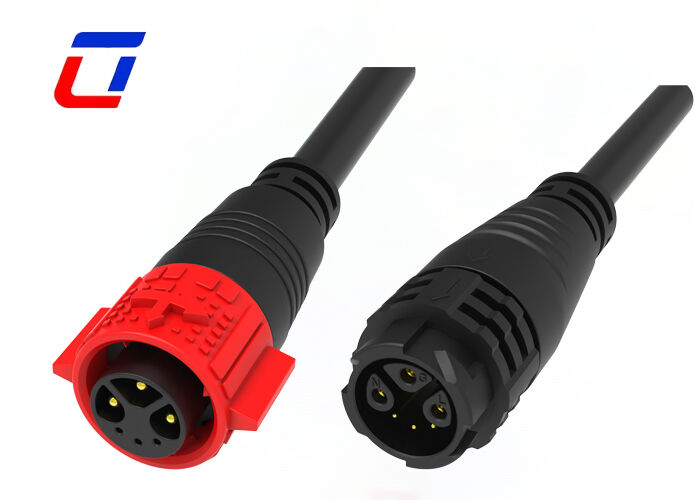

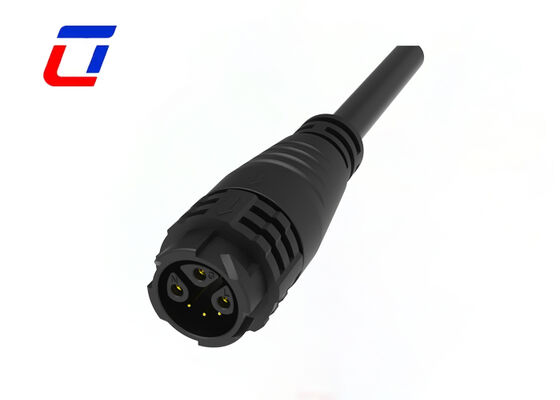

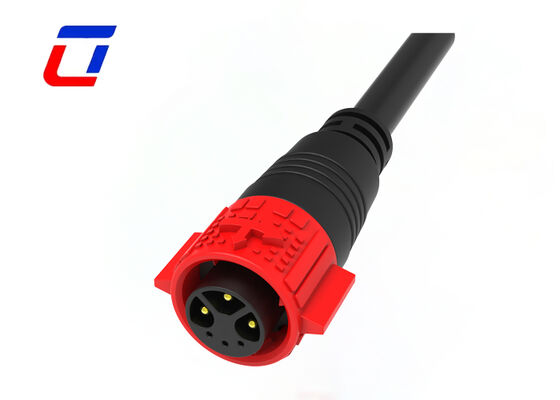

Name: 15A+5A PA66 Wire To Wire Connector 3+3 Pin M19 IP67 Wire Quick Disconnect
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

15A+5A PA66 Wire To Wire Connector 3+3 Pin M19 IP67 Wire Quick Disconnect

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Waterproof Rating:	IP67	Current:	15A+5A
Temperature Range:	-40℃~+105℃	Protection Level:	IP67
Type:	Male/Female	Housing Material:	PA66
Highlight:	15A+5A M19 waterproof connector , 3+3 pin wire disconnect connector , PA66 wire to wire connector

15A+5A PA66 Wire To Wire Connector 3+3 Pin M19 IP67 Wire Quick Disconnect

Product Overview

Waterproof Wire To Wire Connector M19 3+3 Pin 15A+5A Quick Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features	3+3 Positions, 3 Signal Positions, Contacts Preloaded
Electrical Characteristics	600V max. (AC/DC)
Body Features	PA66 Shell Material, Low Fire Hazard Thermoplastic, Elastomer Sealed, Hermetically Sealed
Contact Features	15A + 5A Contact Current Rating, Pin-Socket Type
Mechanical Attachment	Cable Mount (Free-Hanging), Keyed Mating Alignment, With Mating Retention
Dimensions	Wire Size: 20AWG,18AWG,16AWG,14AWG
Usage Conditions	Operating Temperature: -40°C to 105°C, IP67 Water Sealing Level, IP6 Dust Sealing Level
Industry Standards	UL 94V-0 Flammability Rating

Key Advantages

PA66 Material: Excellent weather resistance, impact resistance, corrosion resistance, high temperature resistance and non-aging properties
Quick Disconnect Design: Tool-free easy separation, vibration-resistant and anti-fall locking mechanism
IP67 Protection: Complete dust and water protection, withstands immersion in 1-meter deep water for 30 minutes
Wide Application: Suitable for industrial automation, outdoor electronics, security systems, motor control, and portable equipment

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Technical Details

Frequently Asked Questions

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
