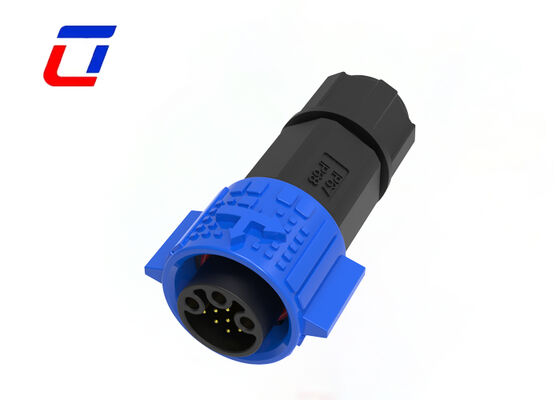

Name: M19 3+9 Pin Waterproof Led Connector Self Locking Cable To Board Connector IP67
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

M19 3+9 Pin Waterproof Led Connector Self Locking Cable To Board Connector IP67

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 PIN	Current:	15A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof LED connector , 3+9 pin self-locking connector , IP67 cable to board connector

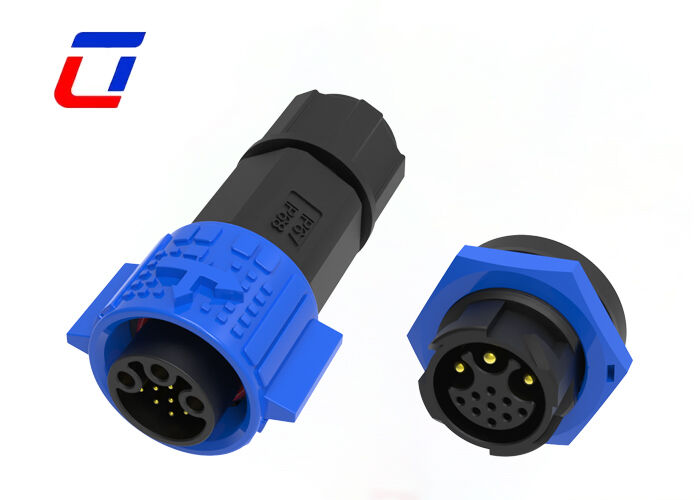

M19 3+9 Pin Waterproof LED Connector Self Locking Cable To Board Connector IP67

Product Overview

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

Core Configuration & Customization

The M19 3+9 Pin Quick-Disconnect OEM Waterproof Connector is an industrial-grade wire connector that supports customization. It features a separate structure of 3-pin main power and 9-pin data signal, with a rated voltage of 300V. Combined with IP67 waterproof performance and a convenient quick-disconnect mechanism, it is specifically designed for scenarios requiring efficient plugging and unplugging as well as personalized needs.

Key Features

Push-Type Quick-Disconnect & Double-Buckle Fixing: Tool-free unlocking with 70% faster plugging efficiency compared to traditional threaded connections
Dual-Function Pin Arrangement: Dedicated 2-pin power zone for 300V power supply and 20-pin data zone for high-speed signal transmission
IP67 Waterproof & Dustproof: Precision sealing gaskets and robust M19 housing for outdoor, industrial, and marine applications
Push-Lock Mating System: Tool-free one-handed operation with audible locking confirmation
Industrial-Grade Stability: High-conductivity copper alloy with silver plating for power pins, gold-plated copper alloy for data pins

Technical Specifications

Product Type Features

Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics

Number of Poles	3+9
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Body Features

Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions

Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Configuration Options

Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: How to track my shipment?

A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Q3: Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
