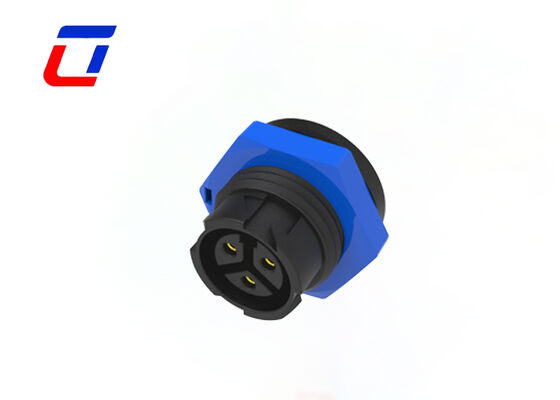

Name: 3Pin Waterproof Panel Mount Connector M16 Push Locking Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products IP67 Waterproof Connector

3Pin Waterproof Panel Mount Connector M16 Push Locking Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3Pin	Current:	10A Max
Rated Voltage:	300V	Waterproof Rating:	IP67
Color:	Red Blue White Black Yellow	Sealing Material:	Waterproof O-Ring
Highlight:	3Pin waterproof power connector , M16 push locking connector , IP67 waterproof panel mount

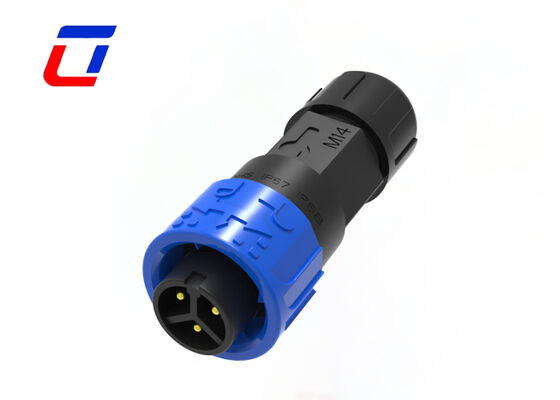

3Pin Waterproof Panel Mount Connector M16 Push Locking Power Connector

3 Pin Power Connector Product Overview

Quick Release M16 3Pin Waterproof Circular Connector Wire To Board. A waterproof connector designed specifically for integrated power supply of equipment panels, compatible with M16 standard installation size.

M16 IP67 Waterproof Connectors Key Features

Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly versions: wire to wire and wire to board options
High current rating up to 10A for long-term operation
Cable assembly service supported with customization options
OEM/ODM services available

Technical Specifications Of 3 Pin Power Connector

Electrical Parameters

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

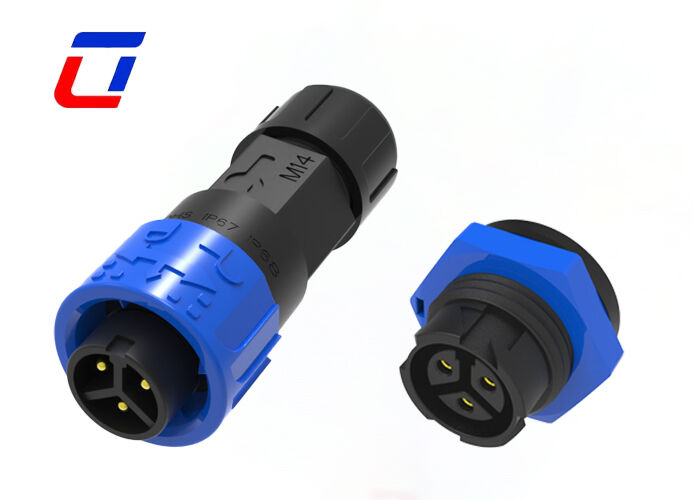

3 Pin Male To Female Connector Design & Construction

Core Positioning: 3-pin precise power supply configuration for stable transfer between equipment panels and external power sources
High-Quality Materials: Weather-resistant and flame-retardant engineering plastic housing (V0-level flame retardancy, UV aging resistance)
Protection Performance: IP67 waterproof and dustproof rating with special sealing structure and high-elasticity waterproof rubber rings
Connection Design: Push-lock locking structure for easy operation, anti-vibration and anti-falling; M16 panel-mounted design

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Who is responsible for customs clearance? Do you provide necessary documents?

We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
