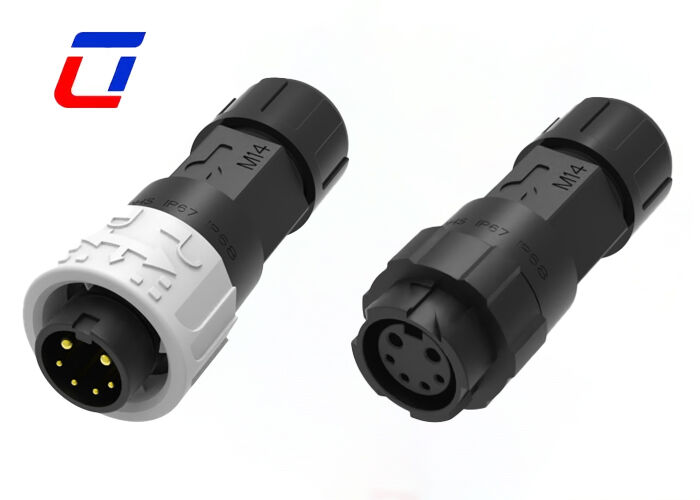

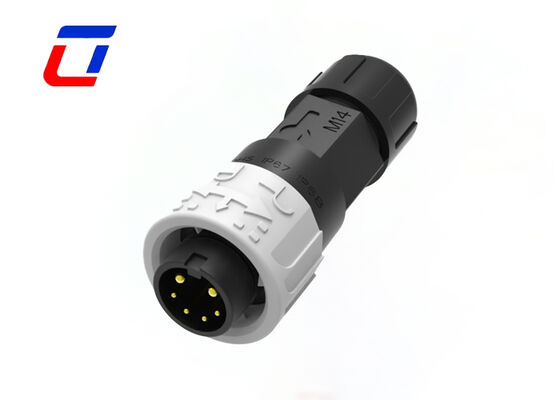

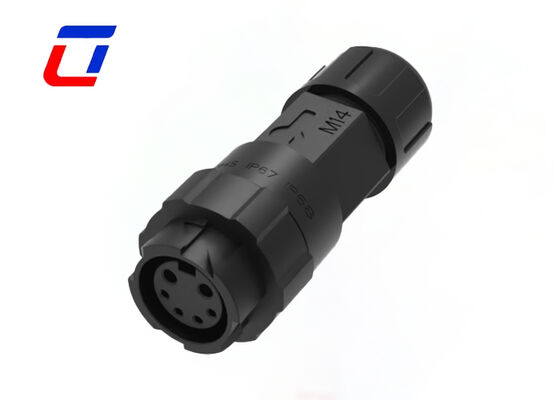

Name: M16 2+4 Pin Connector Round IP67 Waterproof Plastic Outdoor Lighting Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M16 2+4 Pin Connector Round IP67 Waterproof Plastic Outdoor Lighting Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	2+4pin	Current Rating:	5A,10A
Material:	PA66,UL94-V0	Waterproof Level:	IP67
Operating Temperature:	-40℃-+105℃	Connecting Mode:	Push Lock
Highlight:	M16 waterproof lighting connector , IP67 outdoor plastic connector , 2+4 pin waterproof connector

M16 2+4 Pin Connector Round IP67 Waterproof Plastic Outdoor Lighting Connectors

Product Overview

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16 - A specialized circular waterproof connector designed for demanding outdoor lighting applications with composite 2+4 pin configuration.

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Features

Core Design: Circular waterproof connector for outdoor lighting systems with 2+4 pin composite shunt design for simultaneous power and control signal transmission
Specifications: 2-pin power (≥10A) + 4-pin signal configuration for power supply, dimming, and sensor signal transmission
Material Quality: Weather-resistant PA66 engineering plastic housing with UV aging resistance and temperature range of -40℃ to +105℃
Protection Rating: IP67 waterproof and dustproof with integrated sealed structure and special waterproof rubber ring
Connection System: Circular precise alignment with anti-misinsertion design and rotary locking/snap-on mechanism for vibration resistance

Technical Specifications

Parameter	Specification
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: How to buy your products?

A: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

Q3: How can I get samples?

A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample dispatch.
