Name: 16 Pin Male Female Connector M25 Multi Pin Quick Release Socket Solar Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Multi Pin Connectors Waterproof

16 Pin Male Female Connector M25 Multi Pin Quick Release Socket Solar Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+13PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Connection:	Wire To Board
Flame-resistant Rating:	UL94-V0	Color:	Green/Blue/Red
Contact Material:	Brass Gold-Plated	Housing Material:	Nylon
Highlight:	16 pin waterproof solar connector , M25 quick release socket , multi pin male female connector

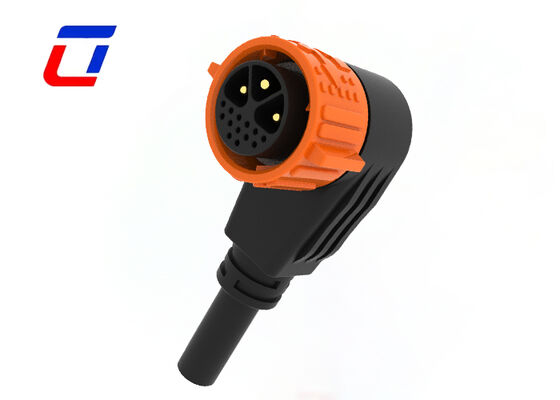

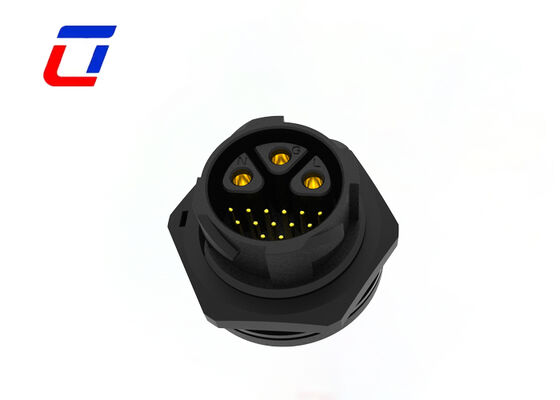

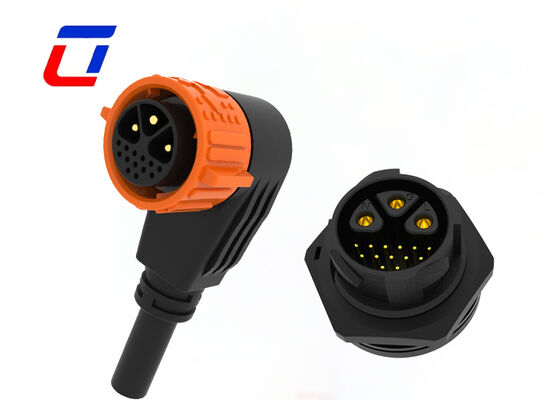

16 Pin Male Female Connector M25 Multi Pin Quick Release Socket Solar Connectors

Product Overview

PA66 M25 3+13 Pin Plug And Socket Cable Connector Quick Release

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67 with Quick Locking System

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Construction

The M25 16-Pin Male & Female Connector is a high-efficiency connection solution specifically designed for solar photovoltaic systems. Adopting a multi-pin integrated design and quick-release buckle structure, it realizes precise male-female pairing and tool-free easy plugging, greatly improving the installation and maintenance efficiency of photovoltaic modules. The product housing is made of flame-retardant PA66 engineering plastic with UV aging resistance treatment, combined with an IP67 ultimate protection structure, which can withstand a wide temperature range of -40℃~+105℃, strong UV radiation and salt spray corrosion, perfectly suitable for outdoor harsh scenarios such as rooftop photovoltaic, ground-mounted power plants and distributed photovoltaic systems. Equipped with 3+13 parallel transmission channels for signals/power, it supports ≤600V DC voltage and ≤15A per-pin current output. The silver-plated copper alloy contacts ensure low-resistance and low-loss transmission. Combined with reverse connection protection and short-circuit protection safety designs, it provides reliable guarantee for the stable linkage of solar modules, inverters and energy storage batteries. Its service life is synchronized with the life cycle of photovoltaic modules, making it a core connection component for efficient, safe and durable new energy photovoltaic systems.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Feature Category	Specification
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0
