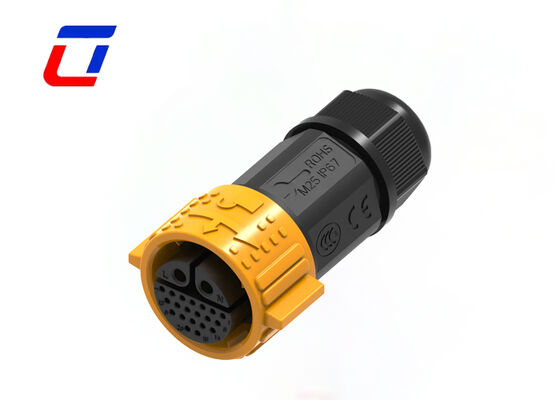

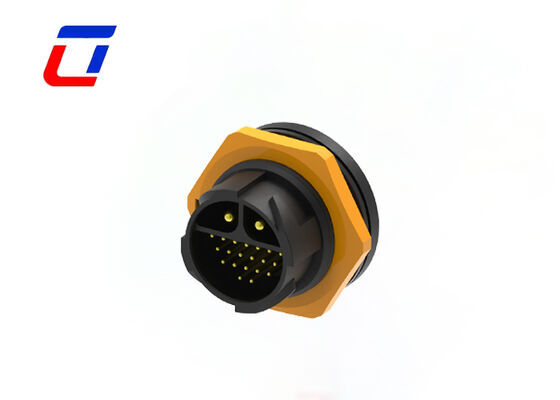

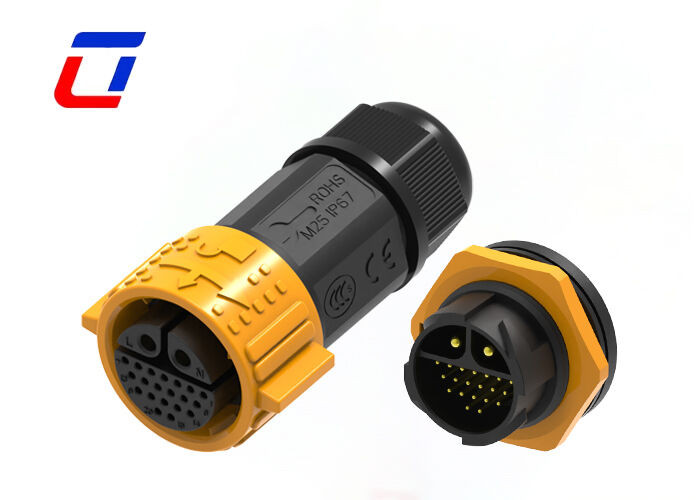

M25 2+20 Pin Circular Push Pull Connectors 300V Plug And Socket Cable Connector

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board is a multi-functional connecting device specially developed for the coordinated transmission of signals and power in industrial scenarios. With its precise pin layout and reliable protection performance, it has become the preferred solution for wire-to-board connection scenarios.

The product adopts a 2+20 pin design, clearly dividing the power transmission area and the signal transmission area. The 2 pins are responsible for stably transmitting 300V power, and the 20 pins ensure low-loss transmission of high-frequency signals. The two work synergistically without mutual interference, perfectly adapting to the needs of industrial equipment that need to realize power supply and signal control at the same time.

The product is equipped with an M25 standard interface, compatible with cables of the same specification, with high connection fit; the core waterproof performance has been strictly tested, which can effectively resist dust intrusion and water stain erosion, adapt to complex working conditions such as outdoors, humidity and dust, and build a solid protective barrier for the stable operation of the equipment. The shell is made of engineering materials with excellent weather resistance, which has outstanding anti-aging, anti-impact and high and low temperature resistance (-40℃ to 105℃) performance, which can easily cope with mechanical collisions and temperature fluctuations in industrial environments, and significantly extend the service life of the product.

• Communications Application
• Product coding machines
• Inventory product coding
• Inkjet systems
• Solar System
• Industrial inkjet equipment
• Electric power equipment
• Laboratory forensic & pathology equipment
• Communications equipment
• Heavy machinery

• Field assembly version cable to board
• Cable assembly service available
• Quick lock fast release structure
• Waterproof rated sufficient for most outdoor applications
• Power signal in one set
• 2pin power 20pin signal arrangement
