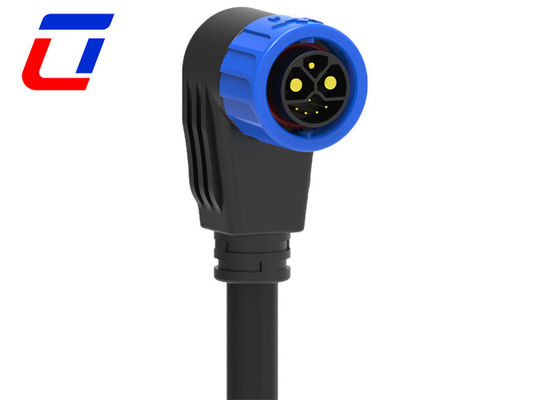

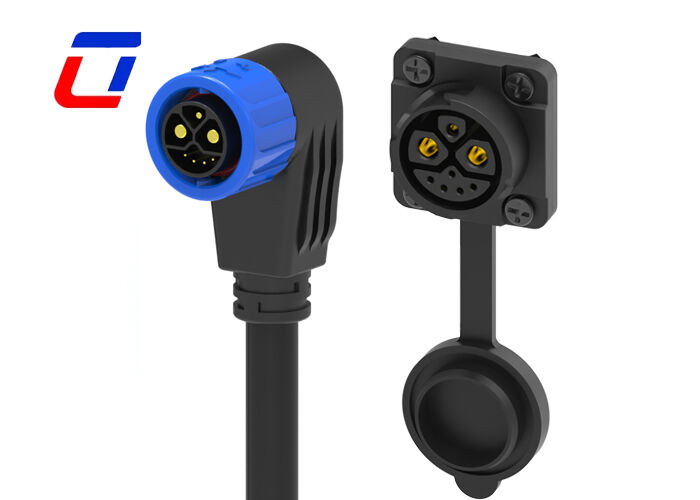

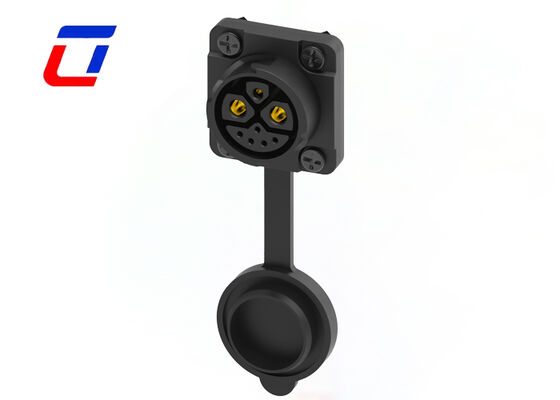

Name: M23 90 Degree molded cable connectors 2+1+5 Pin Push Lock Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M23
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M23 90 Degree molded cable connectors 2+1+5 Pin Push Lock Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M23

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	2+1+5pin	Current Rating:	50A,15A
Type:	Waterproof Connector	Material:	PA66
Diameter Range:	24-9AWG	Color:	Blue
Highlight:	M23 waterproof push lock connector , 90 degree molded cable connector , 2+1+5 pin waterproof connector

1 Grounding 2 Power 5 Data M23 IP67 Waterproof Connector Push Locking

Product Overview

This product is an M23 90-degree molded cable connector, adopting a 2+1+5 pin separate pin layout, equipped with a push-lock structure and waterproof design. The product is manufactured through an integrated molding process, ensuring a firm connection between the cable and the connector. The 90-degree bending design is suitable for narrow installation spaces, enabling precise partitioned transmission of power and signals. It is widely used in industrial automation equipment, CNC machine tools, sensors, outdoor monitoring equipment and other scenarios, providing a stable and reliable waterproof solution for circuit connections in complex installation environments.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Technical Features

90-Degree Molded Structure, Suitable for Narrow Spaces: Adopts a 90-degree bending integrated molding design, which effectively saves installation space and is especially suitable for installation in narrow areas such as inside equipment and corners; the precise molding angle ensures regular cable routing, avoiding damage caused by cable twisting and pulling, and improving the rationality and aesthetics of connection layout.

2+1+5 Pin Partitioned Layout, Precise Transmission Without Interference: Uses a 2-pin + 1-pin + 5-pin separate pin design, corresponding to different power circuits and signal channels respectively, realizing synchronous and precise transmission of power supply and multiple signals, and completely avoiding interference between different types of signals; the pins are made of high-conductive metal material with small contact resistance and low transmission loss, ensuring stable equipment operation.

Push-Lock Design, Firm and Convenient Connection: Equipped with a convenient push-type locking structure, plugging and unplugging is simple, and locking or unlocking can be completed with a light press, greatly improving installation and maintenance efficiency; after locking, the fit is tight, with excellent shock resistance and anti-fall performance, which can effectively resist vibration and external pulling during equipment operation, ensuring continuous and stable connection.

Electrical Parameters

Number of Poles	8pin waterproof connector
Current Rating	50+15A +5Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 16.0mm
Max Cable Cross Section Area	0.5mm² ~ 10.0mm²

Frequently Asked Questions

Q1: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2: Can I have custom label?

A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

Q3: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q4: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
