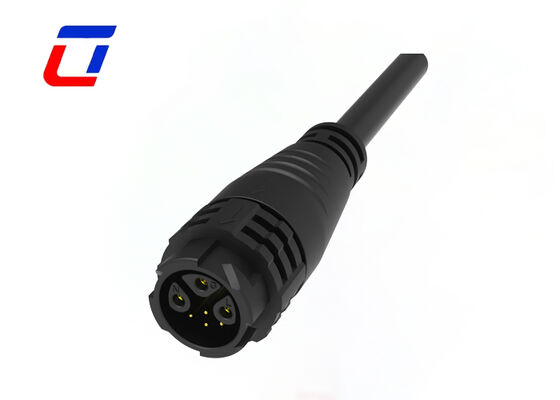

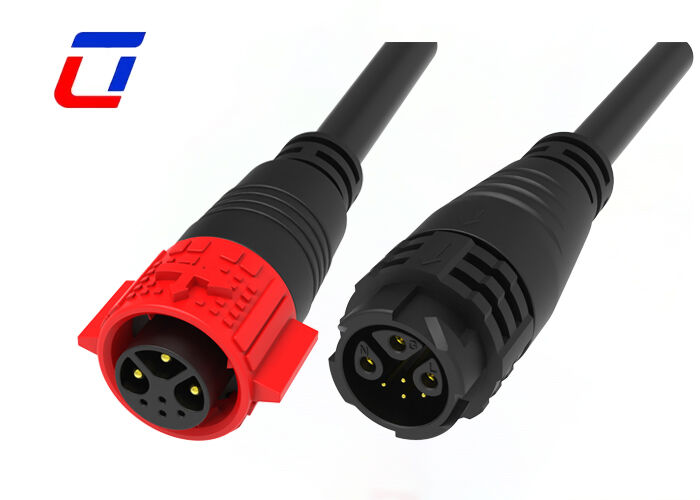

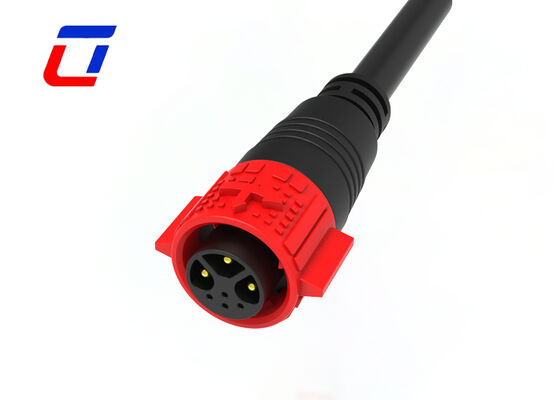

Name: UL94-V0 M19 3+4 Pin Waterproof Connector OEM IP67 Power And Signal Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

UL94-V0 M19 3+4 Pin Waterproof Connector OEM IP67 Power And Signal Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	3+4Pin	Rated Voltage:	300V
Current Rating:	15+5A	Connector Type:	Quick Connector
Material:	Nylon	Protection Level:	IP67
Highlight:	UL94-V0 waterproof power connector , M19 3+4 pin signal connector , IP67 waterproof multi pin connector

Outdoor Waterproof Connector M19 3+4 Pin IP67 Waterproof Connector Wire To Board

Quick Description

This product is a UL94-V0 flame-retardant M19 3+4 pin waterproof connector with IP67 high protection level, which can realize synchronous transmission of power and signal simultaneously and support OEM customization services. Relying on excellent flame-retardant safety, reliable waterproof and dustproof performance and precise transmission characteristics, the product is widely used in outdoor electronic equipment, industrial control systems, automotive electronics, security equipment and other scenarios, providing stable guarantee for circuit connection in complex environments.

UL94-V0 Flame-Retardant Material, Upgraded Safety Protection: The shell is made of flame-retardant engineering plastic that meets UL94-V0 standards, with excellent flame-retardant performance. It is not easy to burn when exposed to fire and can self-extinguish quickly, effectively reducing the risk of circuit fires; at the same time, the material has good aging resistance, impact resistance and chemical corrosion resistance, adapting to various harsh working environments and ensuring use safety and service life.

IP67 Waterproof & Dustproof, Adapt to Complex Environments: Reaches IP67 highest level of dustproof and waterproof standard, which can completely prevent dust from entering and can be immersed in 1-meter deep water for 30 minutes without affecting performance; the precise sealing structure effectively isolates water vapor, oil stains, dust and other impurities, adapting to harsh working scenarios such as outdoor, humid and dusty environments, and improving product environmental adaptability.

Support OEM Customization, Meet Personalized Needs: Provides professional OEM customization services, which can customize pin definition, wire length, connector color, logo printing and other parameters according to customer needs, flexibly match the exclusive connection needs of different equipment, improve the adaptability of the product with terminal equipment, and meet diverse market demands.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

UL94-V0 M19 3+4 Pin Waterproof Connector OEM IP67 Power And Signal Connector 0

UL94-V0 M19 3+4 Pin Waterproof Connector OEM IP67 Power And Signal Connector 2

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. How do I place an order? What is the process?
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
