Name: M19 15A+5A Waterproof Plug And Socket Connector 2+20 Pin Multi Pin Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

M19 15A+5A Waterproof Plug And Socket Connector 2+20 Pin Multi Pin Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Rated Voltage:	300V
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Color:	White Blue Red Black Yellow	Connecting Mode:	Push Lock
Highlight:	M19 waterproof plug connector 15A+5A , 2+20 pin multi pin connector , waterproof socket connector M19

Waterproof Multi 2 Pin For Power Connectors M19 20 Pin Data Connector

Quick Description

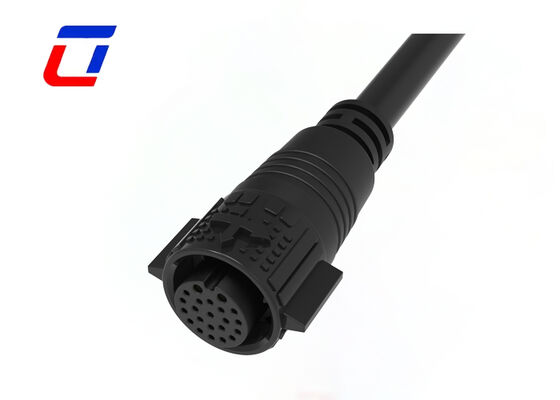

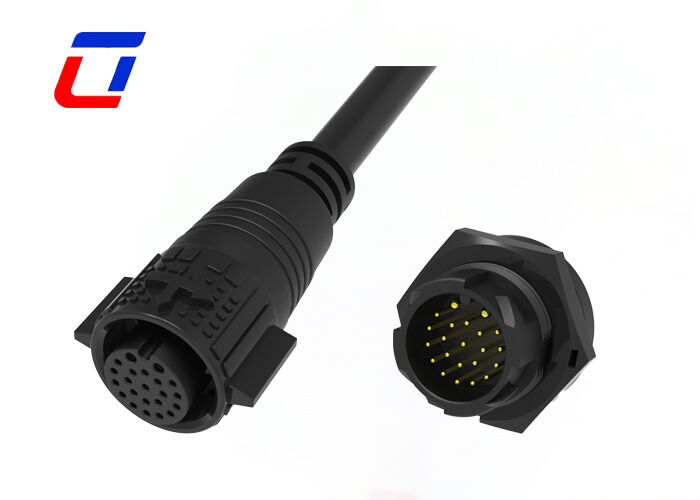

Core Specifications & Dual Current Adaptation: Adopts a 2+20Pin multi-pin precision layout to realize the separate design of power transmission and signal transmission channels; features an M19 standard circular interface, including a complete set of male and female plug-in components, supporting 15A+5A dual current rating output. The 15A channel is suitable for high-power supply needs, and the 5A channel is suitable for low-power signal transmission, meeting the collaborative work requirements of different load devices. It has precise plug-in alignment, stable contact impedance, is compatible with cables of corresponding specifications, and enables efficient installation and docking.

High-Level Waterproof Protection: Has IP67 waterproof and dustproof performance, adopting an integrated sealed housing combined with a high-performance waterproof rubber ring design. It can effectively resist rain, splashing water, sand and dust intrusion as well as short-term water immersion scenarios, eliminating the risks of short circuits and electric leakage during dual current transmission, and ensuring the stable and reliable operation of the connection system in complex environments such as outdoor and humid conditions.

Secure Male-Female Plug-In Design: Adopts a precise snap-on male-female plug-in structure that automatically locks after insertion, with a firm connection that does not loosen. It can effectively resist the impact of equipment vibration, external pulling and other factors to avoid connection detachment; unlocking is convenient and does not require professional tools, facilitating later maintenance and equipment inspection, and is suitable for working scenarios requiring frequent plugging and unplugging.

Wide Application Scenarios: Specifically designed for multi-load and dual current demand scenarios, it is widely used for simultaneous power supply and signal transmission in scenarios such as outdoor industrial equipment, new energy auxiliary equipment, large outdoor machinery, security monitoring systems, industrial automation equipment, and marine auxiliary electrical systems. It is perfectly suitable for electrical projects that require waterproof, multi-channel, and different power level connections.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	2pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch
