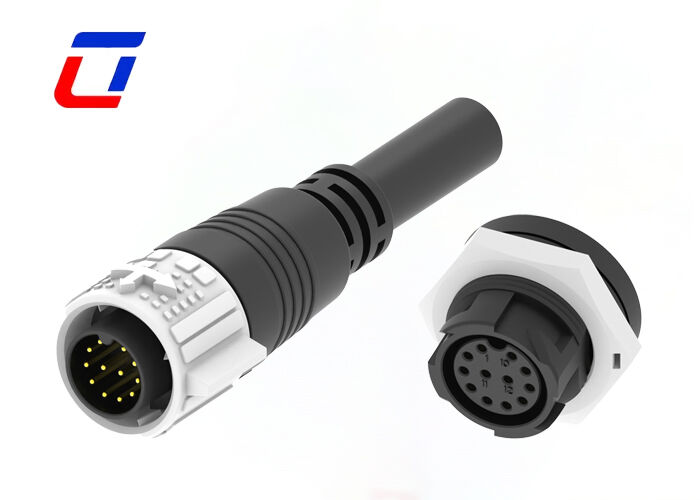

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors
Quick Description
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
In This model connector, Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

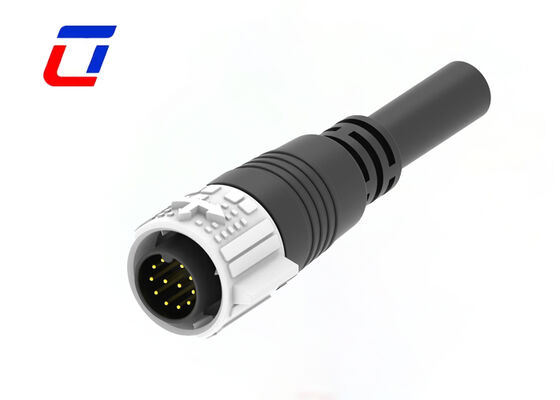

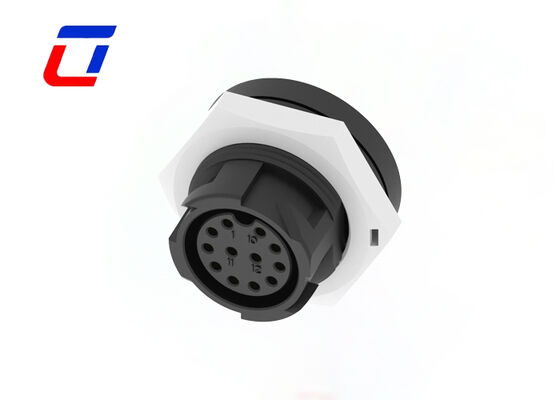

Core Specifications & Adaptation Design: Features a 12Pin precision pin configuration, optimized for signal and power transmission in low-current scenarios, ensuring stable power supply and signal integrity for low-power consumption equipment; adopts an M19 standard circular interface, serving as a male plug that accurately fits 12Pin sockets with precise plug-in alignment, low contact impedance, compatible with cable specifications of various low-current equipment, enabling efficient and smooth installation and docking.
IP67 Waterproof Protection: Equipped with IP67 high-level waterproof and dustproof performance, adopting a dual protection design of integrated sealed housing and high-performance waterproof rubber ring. It can effectively resist rain, splashing water and dust intrusion, and even work normally in short-term water immersion scenarios, completely eliminating the risk of short circuit in low-current transmission scenarios and ensuring stable operation of equipment in complex environments.
Low-Current Exclusive Adaptation: Accurately matches low-current transmission requirements , and the circuit design optimizes low power consumption loss, suitable for power supply and signal transmission of various low-power electronic equipment; the pins adopt precision conduction design, effectively avoiding poor contact in low-current scenarios and improving transmission reliability.
High-Reliability Material & Craftsmanship: The housing is made of high-insulation engineering plastic, with excellent corrosion resistance and impact resistance, while ensuring electrical insulation safety; the pins are tin-plated for anti-oxidation treatment, reducing contact resistance, improving conductive stability and service life, and adapting to the long-term stable operation needs of low-current equipment.
Wide Application Scenarios: Specifically designed for low-current equipment, it is widely used in connection scenarios such as small sensors, portable electronic equipment, outdoor low-power monitoring equipment, smart home low-power components, and medical auxiliary low-current equipment. It is especially suitable for low-current equipment connection needs in outdoor or humid environments requiring waterproof protection.
Safety & Convenience Features: Complies with low-voltage and low-current electrical safety standards, with excellent insulation performance, effectively preventing the risk of electric leakage and electric shock; adopts a foolproof plug-in design to avoid equipment or connector damage caused by reverse insertion; the male plug has a compact structure, easy to install in narrow spaces, and is firmly locked after connection, resistant to slight vibration, ensuring connection stability.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters |
| Number of Poles |
12 Pin |
| Current Rating |
5A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Design Sketch
