Name: 300V M19 male female IP67 waterproof connectors self locking 3+5 pin connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

300V M19 male female IP67 waterproof connectors self locking 3+5 pin connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A	Rated Voltage:	300V
Pin:	3+5Pin	Connector Type:	Quick Connector
Material:	Nylon	Protection Level:	UL94-V0
Highlight:	300V waterproof M19 connector , IP67 self-locking 3+5 pin connector , M19 male female waterproof connector

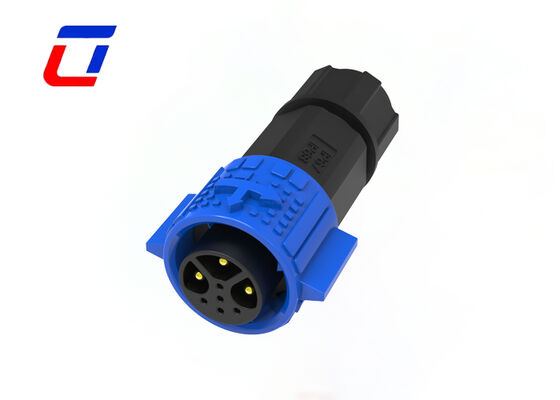

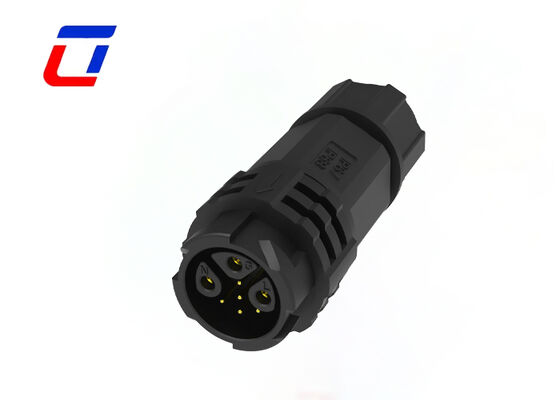

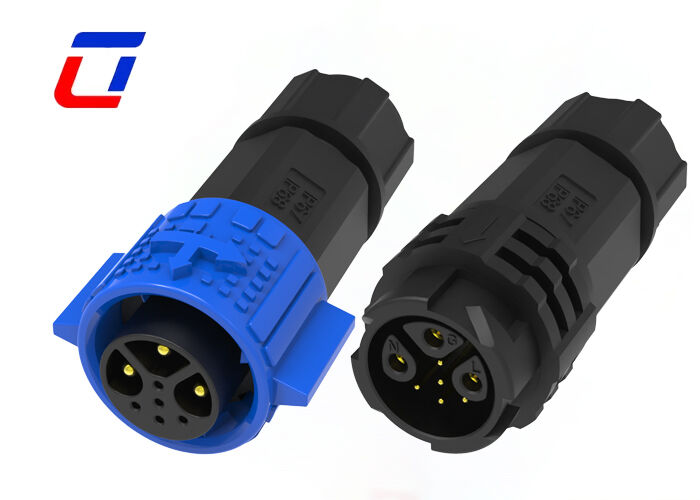

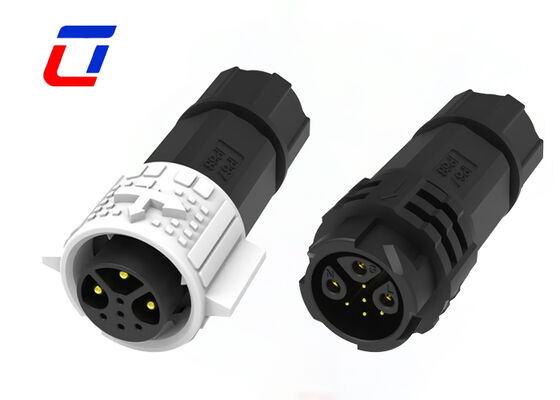

3 +5 Pin M19 IP67 Circular Connectors Wire To Wire

Quick Description

Core Specifications: M19 circular structure, adopts 3+5 Pin composite channels (3 power + 5 signal independent transmission), rated voltage 300V for medium-low voltage systems, supports male-female pairing and self-locking, balancing quick connection and anti-misplug
IP67 Protection: Complies with IP67 standard, achieves full dustproof and 30min immersion protection at 1m via full-circumference sealing and self-locking synergy, resisting outdoor rain, dust and moisture
Structure & Craftsmanship: Weather-resistant flame-retardant PC shell; brass gold-plated pins for anti-crosstalk; elastic alloy self-locking buckle ensures clear plug-in, anti-vibration and anti-fall, suitable for frequent use
Transmission Characteristics: Optimized for 300V medium-low voltage, 3+5 Pin independent channels isolate interference, low loss, meeting power supply and multi-signal collection simultaneously
Customization Services: Supports personalized customization of pin allocation, self-locking force, etc., provides free sample testing and technical docking, covering prototype to mass production
Typical Applications: Widely used in industrial automation, outdoor monitoring, new energy facilities, etc., especially for core scenarios requiring self-locking, IP67 protection and multi-channel transmission

Electrical Parameters
Number of Poles	3+5Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 15A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²
