M16 Waterproof Outdoor Cable Connector 15A 2 Power 4 Signal Connector China

M16 Waterproof Outdoor Cable Connector 15A 2 Power 4 Signal Connector China

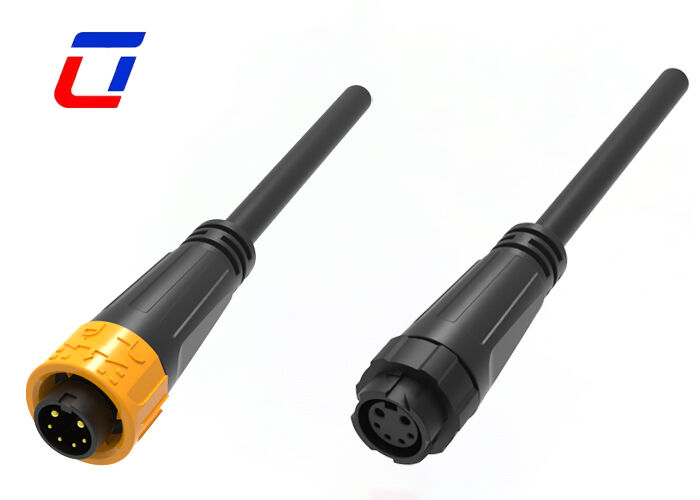

  • M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China

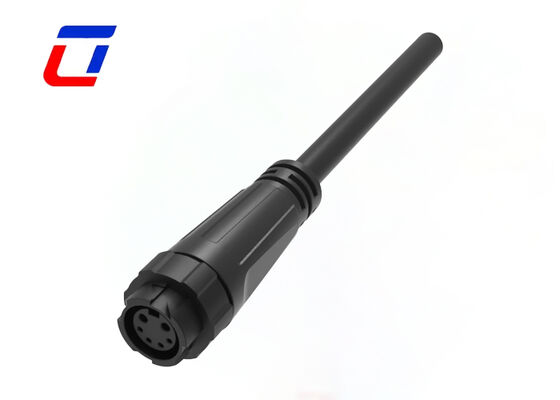

  • M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China

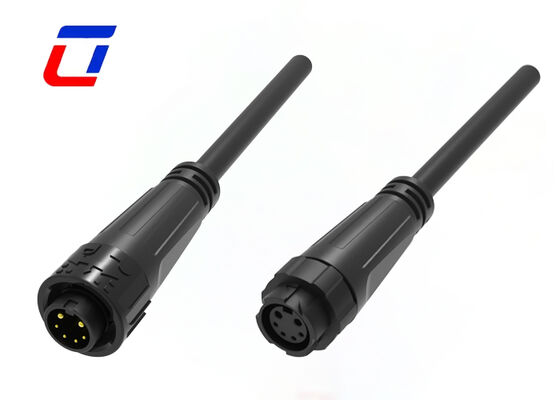

  • M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China

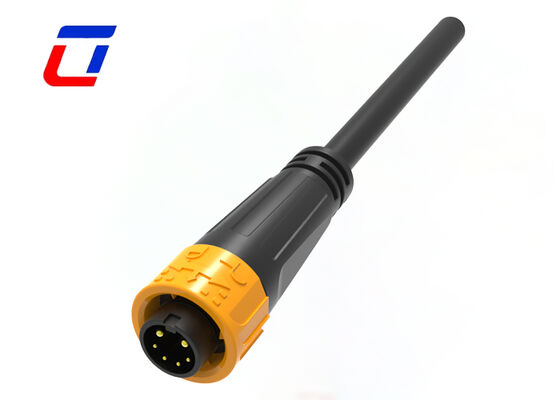

  • M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China
M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China
Product Details:
Place of Origin: China
Brand Name: Ulinkcon
Certification: CE/Rohs/TUV/UL
Model Number: M16
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 3~6working days
Payment Terms: T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability: 100000 pairs Montly
Contact Now
Detailed Product Description
Pin: 2+4pin Current Rating: 5A,10A
Material: PA66 Waterproof Level: IP67
Operating Temperature: -40℃-+105℃ Flame-resistant Rating: UL94-V0
Highlight:

M16 waterproof power connector

,

outdoor waterproof signal connector

,

15A waterproof multi pin connector

 PA66 Plastic 2+4 Multi Pin Ip67 Waterproof Connector M16


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Quick Description


  • Core Configuration: Adopts M16 standard size design, integrates 2 power + 4 signal dual-function transmission, rated current 15A, specially built for outdoor cable power supply and signal synchronous transmission scenarios
  • Material Features: Made of outdoor weather-resistant materials, with waterproof, UV-resistant, high and low temperature resistance properties, which can resist erosion from outdoor wind, rain, dust and other harsh environments, extending service life
  • Protection Capability: Equipped with reliable waterproof performance, effectively isolating outdoor moisture and rainwater intrusion, ensuring the safety of power transmission and the stability of signal transmission, suitable for various outdoor complex working conditions
  • Transmission Advantages: 15A rated current can meet the power supply needs of medium-power outdoor equipment, separate design of power and signal channels avoids mutual interference, with clear signal transmission and stable power supply
  • Application Scenarios: Widely used in outdoor lighting systems, outdoor monitoring equipment (integrated power and signal connection), outdoor amusement facilities, new energy outdoor equipment and other outdoor scenarios requiring dual-channel transmission


Electrical Parameters
Number of Poles 2+4pin waterproof connector
Current Rating 15A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Design Sketch


M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China 0

M16 Waterproof Outdoor Cable Connector 15A  2 Power 4 Signal Connector China 1


FAQ


Q1:Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2:How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q3: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q4: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
