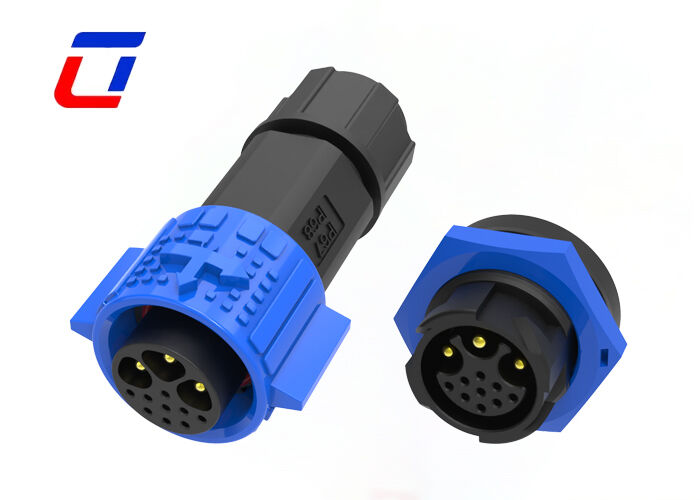

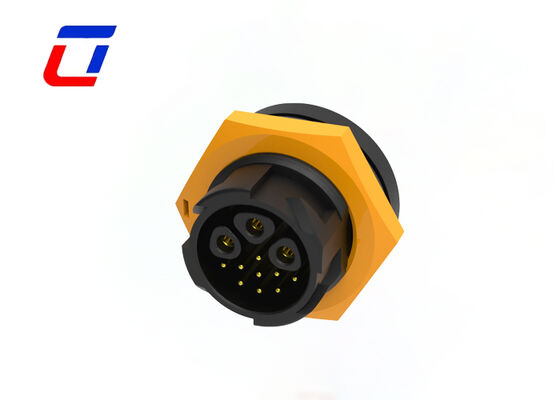

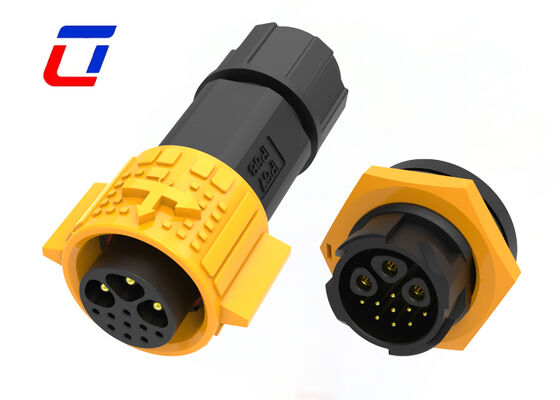

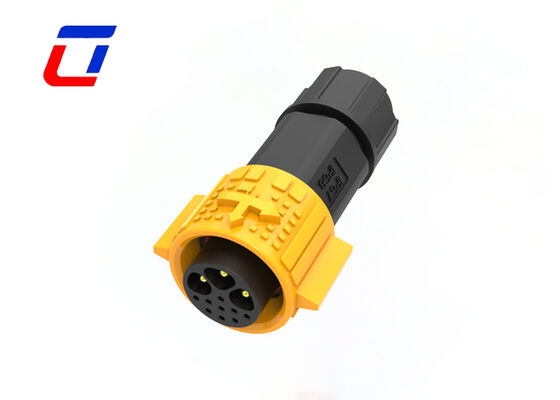

Name: Circular Waterproof Connector M19 3+9 Pin PA66 IP67 Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

Circular Waterproof Connector M19 3+9 Pin PA66 IP67 Wire To Board Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 Pin	Current:	15A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Connecting Mode:	Push Locking
Highlight:	M19 waterproof wire connector , 3+9 pin IP67 connector , PA66 waterproof board connector

Circular Waterproof Connector M19 3+9 Pin PA66 IP67 Wire To Board Connector

Quick Release Wire Connector M19 3+9 Pin OEM Waterproof 300V Connector

PA66 Engineering Plastic Shell - Injection-molded with high-quality PA66 material providing excellent mechanical strength, impact resistance, and deformation resistance. Verified by professional weather resistance tests to withstand outdoor UV radiation, high-low temperature alternation, and acid-alkali corrosion.

3+9 Pin Scientific Shunting - Innovative functional partition design with 3 pins dedicated to stable power transmission and 9 pins for synchronous transmission of multiple control signals. This eliminates power and signal interference, improving data transmission accuracy and stability.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+9
Current Rating	15A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends mainly on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Q2: What payment methods do you accept?

A2: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q3: Do you accept other payment currencies besides USD?

A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
