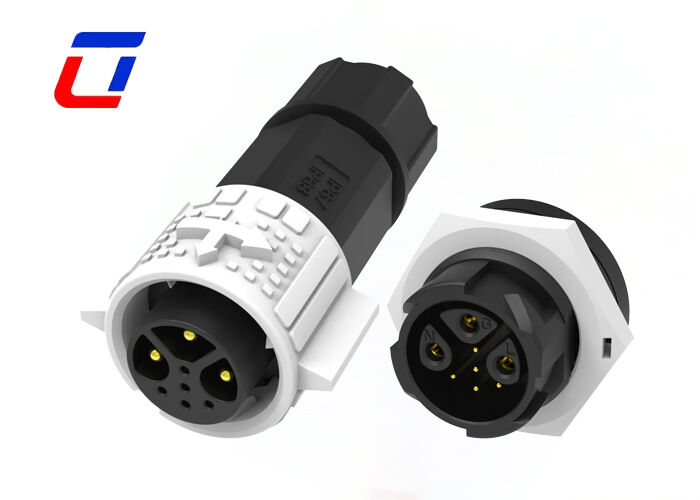

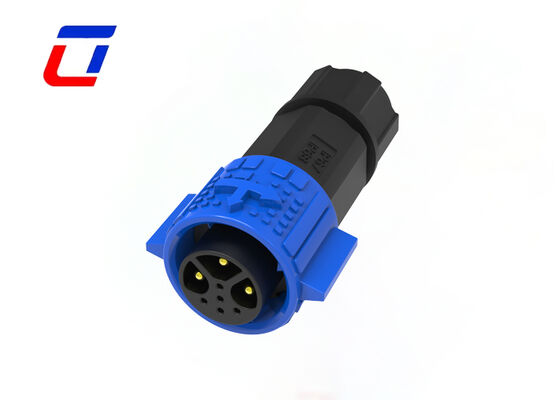

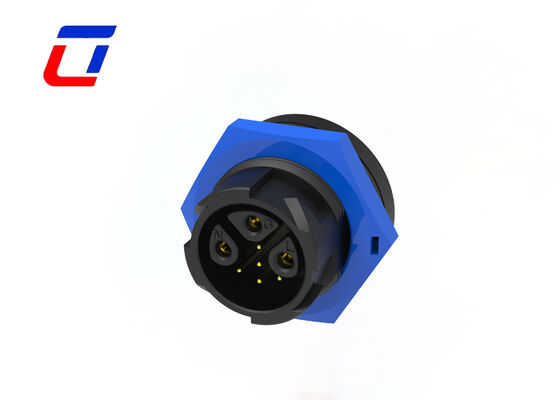

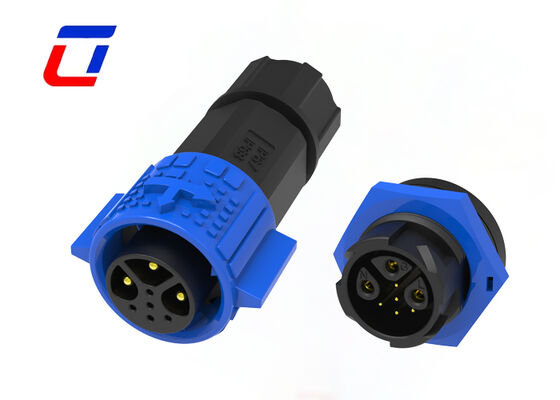

Name: IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A	Rated Voltage:	300V
Pin:	3+5Pin	Connector Type:	Quick Connector
Material:	Nylon	Gender:	Male To Female
Highlight:	IP67 waterproof M19 connector , 3+5 pin quick release plug , M19 male female socket

IP67 Waterproof Connector 3+5 Pin M19 Male Female Quick Release Plug Socket

Product Overview

M19 3+5 Pin IP67 Circular Plug and Socket Connectors designed for reliable performance in demanding industrial environments.

Environmental Protection

IP67 waterproof and dustproof rated, providing complete protection against dust ingress and temporary immersion up to 1 meter for 30 minutes. Ideal for harsh outdoor conditions including rain, sand, dust, and heavy fog environments.

Power & Signal Separation

3+5 Pin shunt layout design with 3 pins dedicated to stable power transmission and 5 pins for multi-channel signal synchronization, preventing interference between power and signal lines.

Quick Release Design

Push-lock quick release system enables tool-free installation and maintenance with anti-misplug protection to prevent accidental disconnection.

Electrical Specifications

Parameter	Specification
Number of Poles	3+5 Pin
Current Rating	15A max
Voltage Rating	300VAC max
Dielectric Strength	1500VAC @ 60 s

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Wire Size OD (Min)	3.0mm - 6.0mm
Wire Size OD (Max)	8.0mm - 10.0mm
Max Cable Cross Section	0.5mm² - 2.5mm²

Configuration Options

Push lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions: wire to wire and wire to board options
Current rated 20A for continuous operation
Cable assembly service supported with custom options
OEM/ODM services available

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
