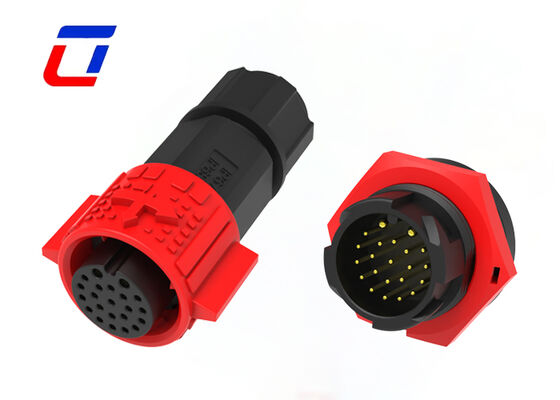

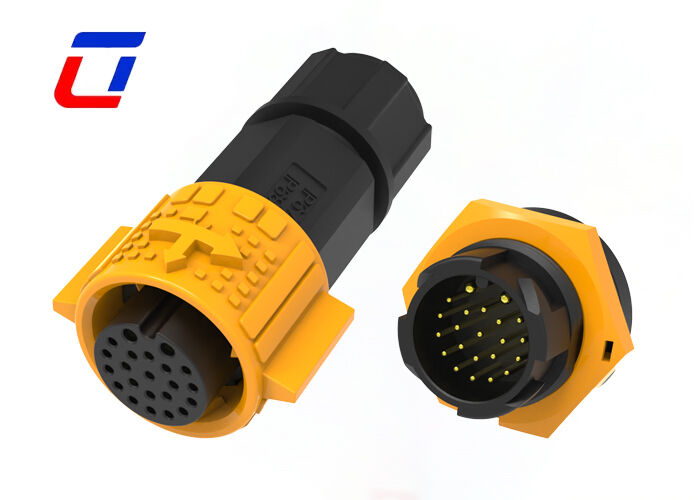

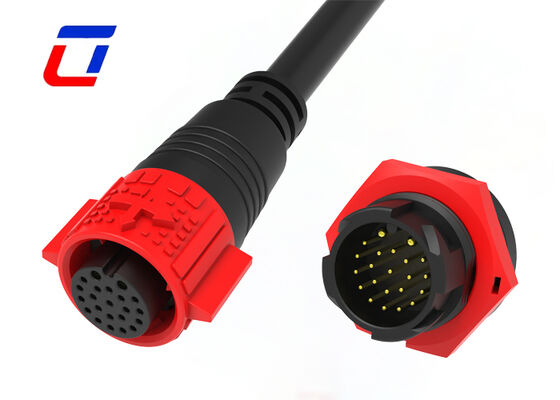

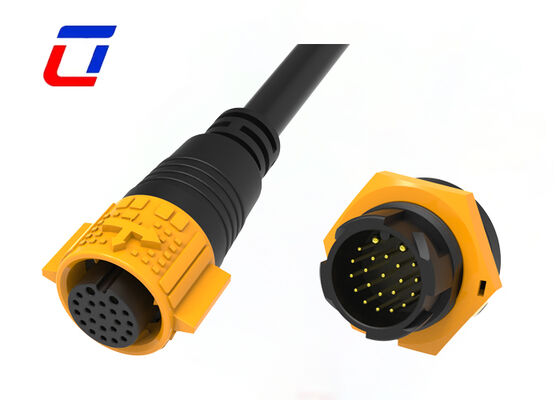

Name: Waterproof Cable Connector IP67 M19 2+20 Multi Pin Connectors For Outdoor Electronics
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

Waterproof Cable Connector IP67 M19 2+20 Multi Pin Connectors For Outdoor Electronics

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Rated Voltage:	300V
Connector Type:	Self-locking Male To Female	Color:	White Blue Red Black Yellow
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	Waterproof M19 multi pin connector , IP67 outdoor cable connector , 2+20 pin waterproof connector

Waterproof Cable Connector IP67 M19 2+20 Multi Pin Connectors

Product Overview

Waterproof Multi 2 Pin For Power Connectors, 20 Pin Data Connector designed for outdoor electronics with IP67 protection and separate power/signal transmission.

Key Features

IP67 high-level protection for harsh outdoor environments - dustproof and waterproof, can be immersed in 1-meter-deep water for 30 minutes
2+20 multi-pin shunt design for separate transmission of power and signal - 2 pins for power supply, 20 pins for multi-channel signal transmission
Exclusive adaptation for outdoor electronic equipment including LED lighting, surveillance cameras, sensors, and solar equipment

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Electrical Parameters

Parameter	Specification
Number of Poles	2+20 pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300+60VAC
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	500VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by the customer. Please provide your courier account number and detailed address, and we will send the sample immediately.

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
