Name: 10 Pin Quick Release M19 IP67 Low Voltage 60V Circular Wire Connector Plug And Scoket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products IP67 Waterproof Connector

10 Pin Quick Release M19 IP67 Low Voltage 60V Circular Wire Connector Plug And Scoket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Connector Type:	Quick Connector	Pin:	10Pin
Material:	Nylon	Current Rating:	5A
Protection Level:	IP67	Color:	Blue，White，Black
Highlight:	10 pin M19 waterproof connector , 60V low voltage circular connector , IP67 quick release wire plug

M19 10 Pin Waterproof Quick Disconnect Wire Connectors

Quick Description

This 10 Pin Quick Release M19 IP67 Low Voltage 60V Circular Wire Connector Plug and Socket is a high-performance connection solution specially designed for stable signal and power transmission in low-voltage scenarios. With its excellent structural design and reliable performance, it is widely suitable for various application scenarios such as industrial control, outdoor electronic equipment and communication terminals. The core advantages are as follows:

Firstly, the quick-release design greatly improves installation and maintenance efficiency. The product adopts a user-friendly quick-release structure, which allows precise docking and separation of the plug and socket manually without additional tools. Whether it is the initial installation and commissioning of equipment or later maintenance and replacement, it can effectively save operation time. It is especially suitable for equipment scenarios that require frequent disassembly and movement, such as outdoor monitoring instruments and temporarily built communication equipment, significantly reducing labor and time costs.

Secondly, IP67 high protection level, easily coping with harsh operating environments. The connector strictly complies with the IP67 protection standard, with complete dustproof and short-term water immersion protection capabilities. The shell is made of high-quality sealing materials and a precision sealing structure design, which can effectively resist the intrusion of dust and sediment. At the same time, it can be immersed in 1-meter-deep water for 30 minutes without affecting internal performance. Even in harsh outdoor environments such as rain, humidity and dust, it can ensure connection stability and avoid signal interruption or equipment failure caused by environmental factors.

Thirdly, 10-pin precise transmission, adapting to low-voltage scenario requirements. The product is equipped with a 10-pin design, which can realize synchronous transmission of multi-channel signals and power. The pins are made of high-conductive materials with low contact resistance and low transmission loss, and can stably carry a working voltage of low-voltage 60V. It perfectly matches the use needs of low-voltage equipment such as LED lighting systems, security monitoring equipment, sensor modules and small industrial controllers, ensuring clear signals and stable power during equipment operation.

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

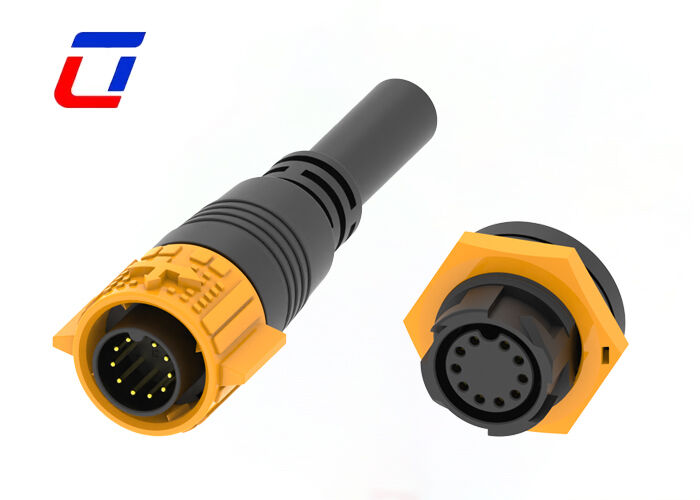

10 Pin Quick Release M19 IP67 Low Voltage 60V Circular Wire Connector Plug And Scoket 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

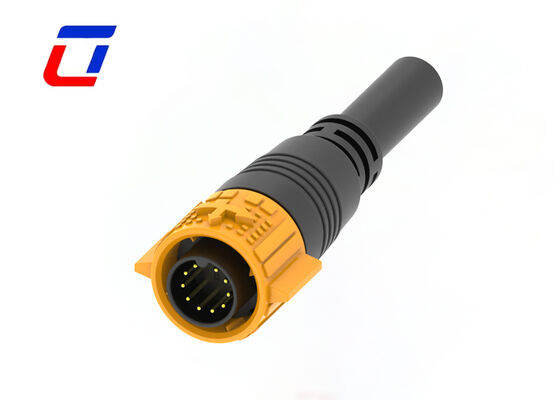

10 Pin Quick Release M19 IP67 Low Voltage 60V Circular Wire Connector Plug And Scoket 2
