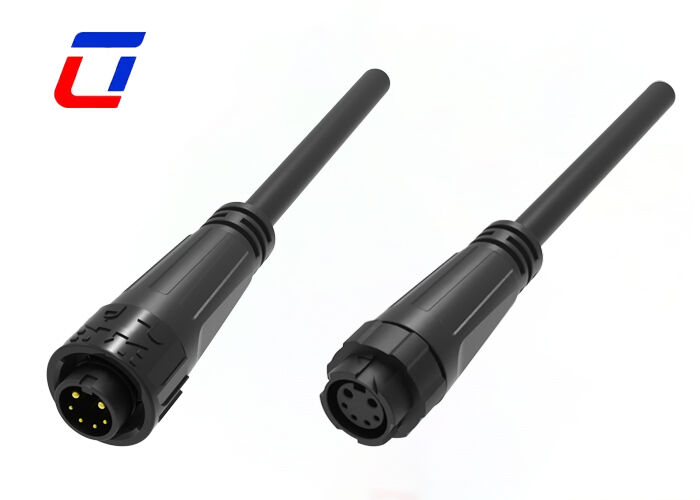

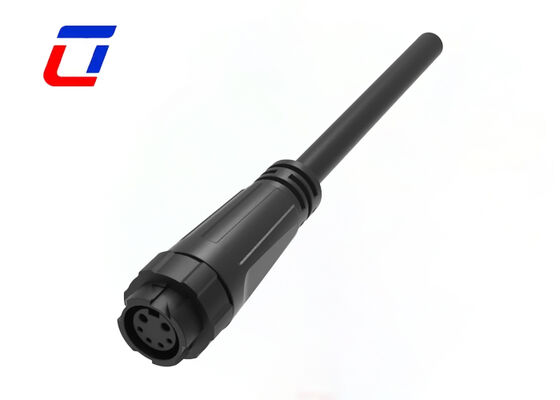

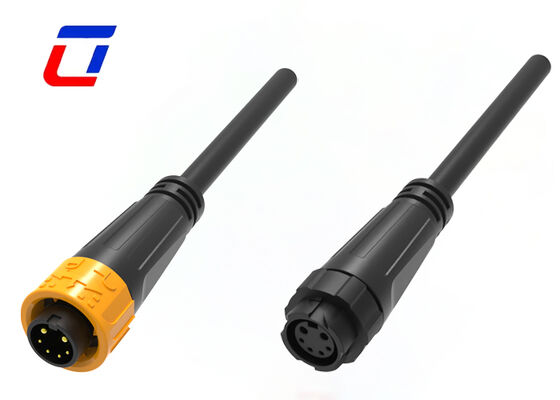

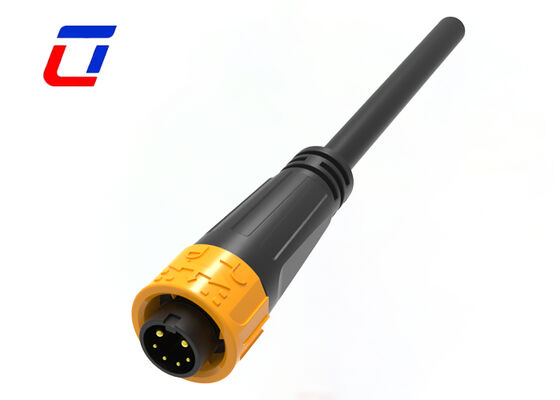

Name: Multi Pin Waterproof Connector M16 2+4 Pin Nylon Wire Connectors For Industrial Sensors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Multi Pin Connectors Waterproof

Multi Pin Waterproof Connector M16 2+4 Pin Nylon Wire Connectors For Industrial Sensors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Type:	Waterproof Connector	Pin:	2+4pin
Current Rating:	5A,10A	Material:	PA66
Operating Temperature:	-40℃-+105℃	Color:	Blue,Red,Black
Highlight:	M16 waterproof wire connector , industrial sensor nylon connector , 2+4 pin waterproof connector

Multi Pin Waterproof Connector M16 2+4 Pin Nylon Wire Connectors

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16 designed for industrial applications requiring reliable power and signal transmission in demanding conditions.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

The Multi Pin Waterproof Connector M16 2+4 Pin Nylon is a tailor-made connectivity solution engineered exclusively for industrial sensors, combining targeted design, robust protection, and stable transmission to address the critical connectivity needs of sensor systems in harsh industrial environments.

As a core component bridging industrial sensors and control units, this connector is built with high-performance reinforced nylon (PA66) housing, which delivers exceptional mechanical strength, impact resistance, and chemical corrosion resistance—effectively withstanding abrasion from dust, oil, and industrial solvents commonly found in factories, workshops, and outdoor industrial sites.

The standout 2+4 pin composite configuration is specifically optimized for industrial sensor applications: the 2-pin group is dedicated to stable power supply, ensuring continuous energy input for sensor operation, while the 4-pin group specializes in high-fidelity signal transmission, capturing and relaying precise detection data (such as temperature, pressure, humidity, and position signals) without distortion.

Each contact pin is crafted from high-conductivity phosphor bronze, plated with nickel and gold to minimize contact resistance (≤10mΩ) and enhance anti-oxidation performance. This material combination guarantees low signal loss and consistent electrical performance even after 5,000+ mating cycles, critical for the reliability of sensor-based monitoring and control systems.

Electrical Parameters

Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: Do you accept OEM/ODM customization services?

A: Yes, we have rich experience in OEM/ODM cooperation with global brands. We support customization of product design, specifications, colors, logos, packaging, and functions. Please provide your detailed requirements, and our R&D team will develop a tailored solution for you.

Q3: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q4: Do you provide after-sales technical support?

A: Yes. Our technical team provides 24/7 online support via email, WhatsApp, or video call. We can answer product usage, installation, and maintenance questions, and provide detailed technical guidance or video tutorials if needed.
