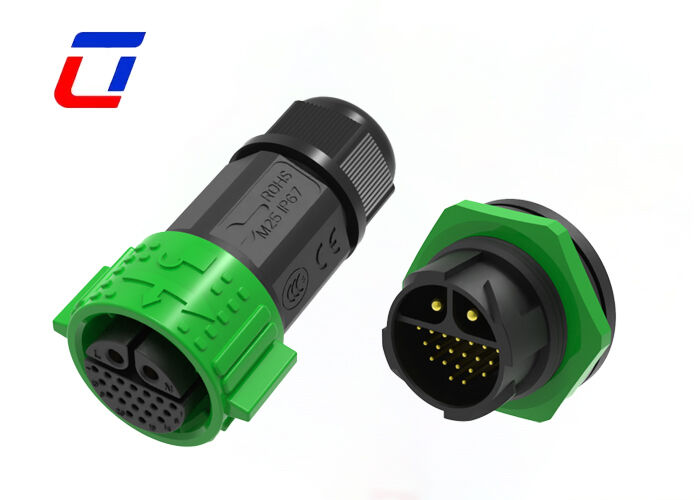

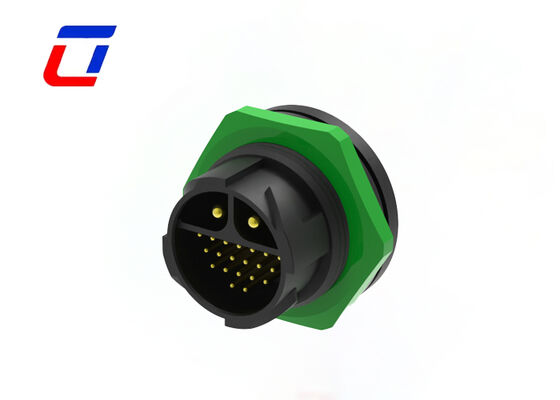

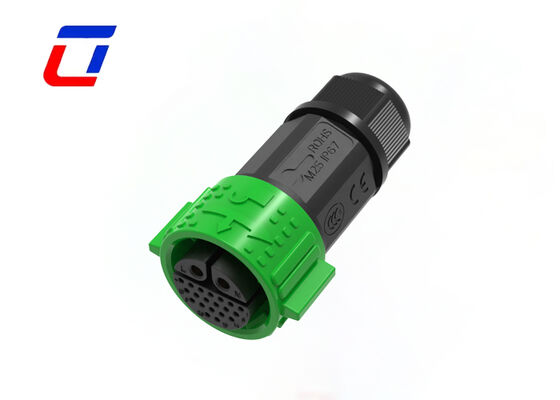

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board
Quick Details of Multi pin connector waterproof
M25 2+20 Pin Waterproof Signal & Power Multi-Connector (300V Wire-to-Board Type) is an integrated wire-to-board connection system tailored for the composite needs of "streamlined power supply + ultra-multi-channel data" in industrial scenarios.
With "2-pin high-power supply + 20-pin data cluster transmission + M25 sealed interface" as its core design, it accurately matches outdoor intelligent sorting equipment, large-scale environmental monitoring stations, industrial robot end effectors and new energy Battery Management Systems (BMS), completely solving the problems of crowded board-end interfaces and low wiring fault tolerance caused by traditional "multi-connector splicing".
Adopting M25 standard circular structure, the 2-pin main power circuit and 20-pin data circuit are physically isolated by independent insulating chambers, with a rated voltage of 300V . The wire end and board end realize tool-free docking through the quick-lock structure, which can simultaneously ensure stable power supply and ultra-multi-channel data collection in outdoor humid, dusty and vibrating environments.
This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly work for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Main Features

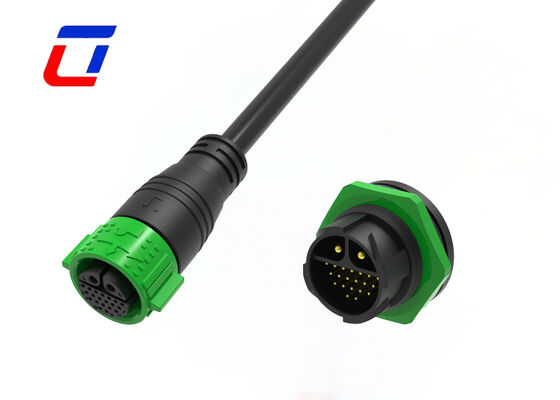

- Field assembly version cable to board
- Cable assembly service available
- Quick lock fast relese structure
- Waterproof rated sufficient for most outdoor applications
- Power signal in one set
- 2pin power 20pin signal arrangement
| Electrical Parameters |
| Number of Poles |
22pin wire to board connector |
| Current Rating |
20A +5A |
| Voltage Rating |
300VAC max |
| Durability Voltage |
2500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
40A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Product Configuration
Product Dimension
More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
