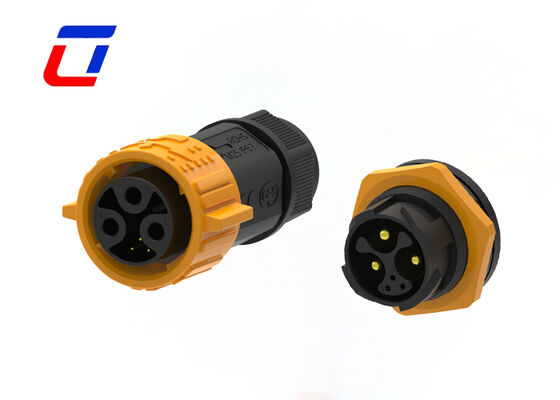

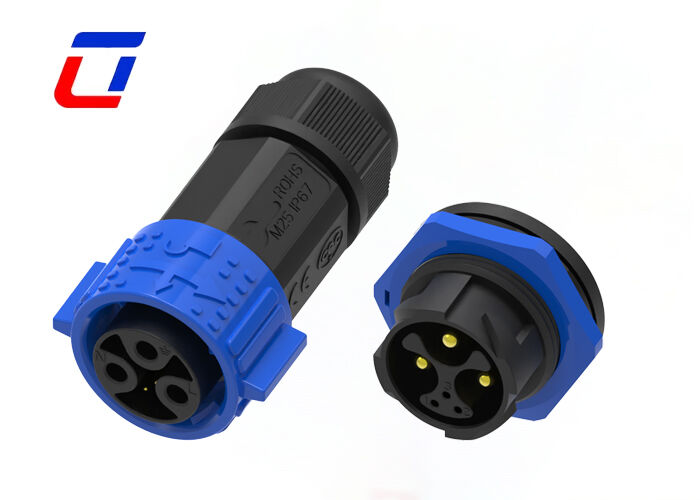

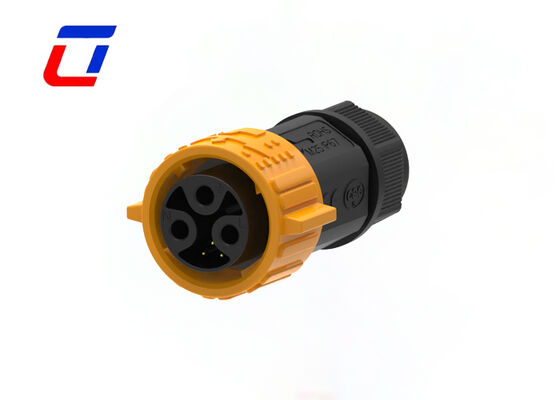

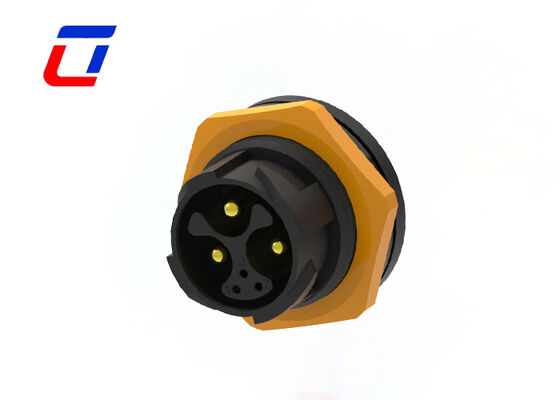

Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock Plug Socket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Waterproof Rating:	IP67
Current:	15A	Temperature Range:	-40℃~+105℃
Material:	Nylon	Type:	Male Female Plug Socket
Highlight:	Waterproof M25 connector 3+3 pin , IP67 quick lock plug socket , 15A male female waterproof connector

Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock Plug Socket

Waterproof Connector M25 3+3 Pin IP67 15A Male Female Quick Lock Plug Socket is a specialized connecting device developed for the simultaneous transmission of "power + signal" in medium and low-power equipment.

With "3+3 pin functional partition + M25 standard interface + IP67 protection" as its core advantages, it is accurately suitable for smart home control modules, medical monitoring equipment, small new energy storage equipment and outdoor security monitoring systems, which have high requirements for signal stability and power supply safety.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Connector System	Cable-to-Cable
Sealable	Yes
Number of Positions	3+3
Number of Signal Positions	3
Operating Voltage (VAC/VDC)	600V max.
Contact Current Rating	15A max.
Shell Material	PA66
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What is rated Current?

Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3: How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
