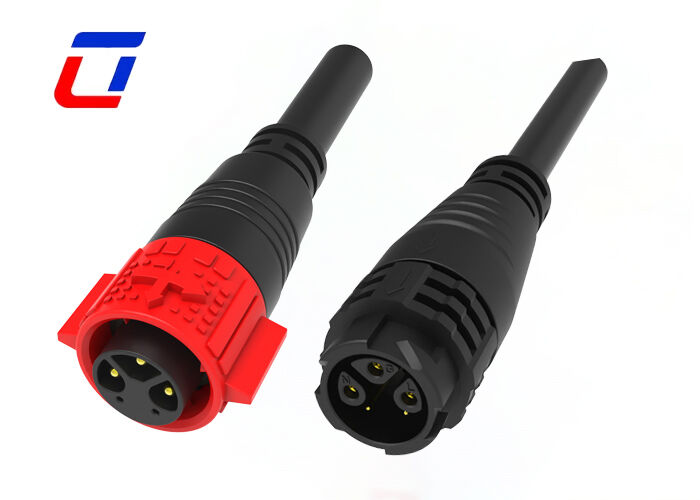

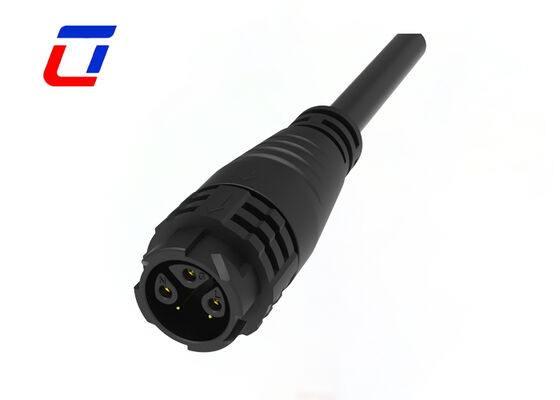

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector

Quick Details of 5Pin waterproof connector

3+2 Pin Zoned Design for Precise Function Separation: Adopting a zoned layout with 3 independent power channels and 2 data channels, the 3 power pins are responsible for stably delivering low-current electricity, while the 2 data pins focus on high-frequency, low-interference signal transmission. This clear functional division structurally avoids power fluctuations interfering with data signals, ensuring efficient transmission of both in low-current working conditions, and adapting to the needs of precision equipment such as sensors and small controllers.

Low-Current Optimization for More Stable Transmission: Specially optimized for low-current scenarios (3A and below), the contacts are made of high-purity gold-plated copper alloy, which not only reduces contact resistance (≤5mΩ) but also enhances anti-oxidation and wear-resistant performance. It effectively avoids problems such as poor contact and signal loss caused by too small current. At the same time, the pins adopt precision stamping technology to ensure tight fit with wires, further guaranteeing the power supply stability and data accuracy of low-power devices.

M19 Structure + Threaded Locking for More Secure Connection: The standardized M19 circular structure is paired with a threaded locking mechanism. After the male and female connectors are mated, they are fixed by rotation, which can withstand slight vibrations and external pulls to prevent accidental disconnection. The housing is made of high-strength ABS engineering plastic, with basic scratch and aging resistance. Combined with a sealing rubber ring, it achieves IP67 ingress protection rating, which can resist daily dust and splashing water, and is suitable for indoor and outdoor non-extreme humid environments.

Direct Wire-to-Wire Connection for Easier Installation: Designed specifically for wire-to-wire connection, it supports two termination methods: crimping and soldering, and is compatible with 18-24AWG wires without the need for complex adapter accessories. The tail of the connector is equipped with an adjustable cable gland, which can tightly wrap cables with a diameter of 3-8mm, preventing pin loosening caused by wire stress. Even novices can quickly complete the installation, greatly improving wiring efficiency.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Type Features
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics
Number of Poles	5
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Operation/Application
Durability Rating (Cycles)	250, 251
Industry Standards
UL Flammability Rating	UL 94V-0

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector 2
