Name: waterproof multi 2 pin For Power connectors M19 300V push locking 20 pin data connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Multi Pin Connectors Waterproof

waterproof multi 2 pin For Power connectors M19 300V push locking 20 pin data connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T, D/P, L/C, D/A, , Western Union, MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Rated Voltage:	300V
Connector Type:	Self-locking Male To Female	Color:	White Blue Red Black Yellow
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	waterproof M19 power connector , 2 pin push locking connector , 20 pin waterproof data connector

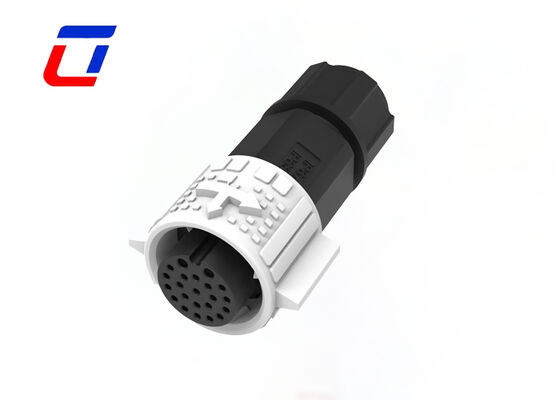

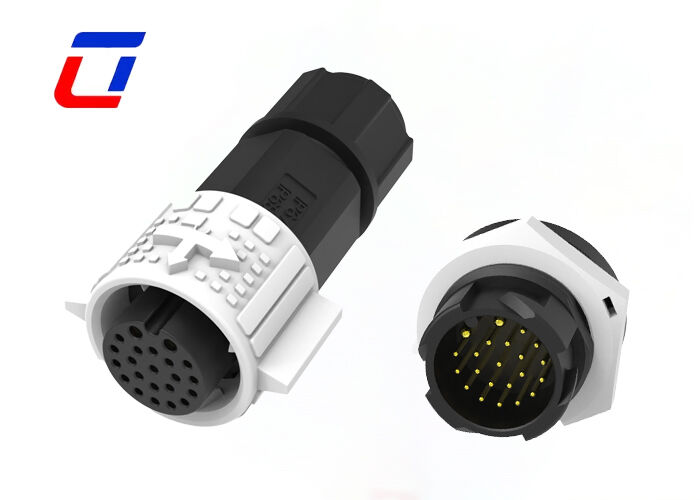

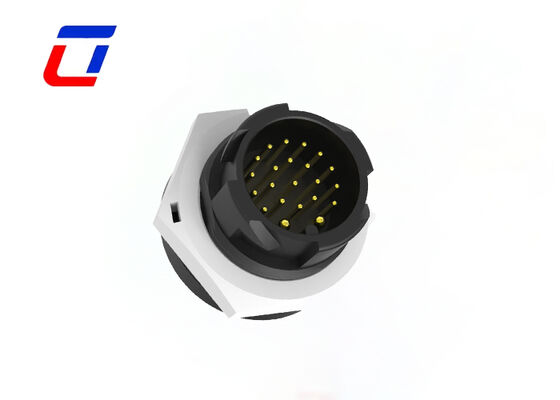

waterproof multi 2 pin For Power connectors M19 300V push locking 20 pin data connector

Quick Description

Dual-Purpose Pin Configuration: The connector features a dedicated 2-pin power section for efficient 300V power delivery and a 20-pin data section for high-speed, low-interference signal transmission. This separated design prevents cross-interference between power and data circuits, ensuring both stable energy supply and accurate data transfer in complex systems.
IP67 Waterproof & Dustproof Performance: Adopting precision sealing gaskets and a rugged M19 housing, the connector achieves IP67 ingress protection. It effectively withstands rain, splashing water, dust accumulation, performing reliably in outdoor, industrial, or damp environments like factory floors, outdoor equipment stations, and marine settings.
Push-Locking Mating for Quick & Secure Connection: The intuitive push-locking mechanism enables tool-free, one-handed mating—simply push the male and female connectors together until a "click" confirms a tight lock. This design not only reduces installation time by 40% compared to threaded connectors but also prevents accidental disconnection caused by vibration, impact, or external tugs.
Industrial-Grade Stability & Durability: Power pins are made of high-conductivity copper alloy with silver plating to handle 300V loads efficiently, while data pins use gold-plated copper alloy to minimize contact resistance and ensure error-free signal transmission.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	22pin waterproof connector
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

waterproof multi 2 pin For Power connectors M19 300V push locking 20 pin data connector 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Tag:

Contact Person: Miss. Gina

Tel: +86 075523019434

Other Products

IP67 Power Signal Multi Pin Electrical Connectors Waterproof Male Female 22 Pin

Waterproof Rating: IP67

Current: 40A max.

Number of Pins: 22Pin waterproof connector

Temperature Range: -40℃~+105℃

XLR 60V Multi Pin Connectors Waterproof 12 Pin Male To Female Connectors

Application: Electrical equipment

Type: XLR

Connector type: self-locking male to female

Gender: Male & Female

Quick Release Circular Multi Pin Connectors Industrial 12 Pin Waterproof Connector

Connector type: self-locking male to female

Application: Electrical equipment

Type: XLR

Gender: Male & Female

XLR Plug Socket Waterproof Multi Pin Connectors 300V 3 Female Power 9 Male Signal

Connector type: self-locking male to female

Application: Electrical equipment

Type: XLR

Gender: Male & Female

High Current Rated 30A 16 Pin Male Female Connector Multi Pin IP67 Waterproof

Voltage rating: 300V

Current: 30A max.

Number of Pins: 16Pin waterproof connector

Waterproof Rating: IP67

M19 Multic Pin Male To Female Cable Connectors Waterproof 3 Power 5 Signal IP67

Type: XLR

Gender: Male & Female

Connector type: self-locking male to female

Application: Electrical equipment

M19 PA66 300V Multi Pin Connectors Waterproof Quick Connect Wire Connectors

Connector type: self-locking male to female

Rated current: 15A*3+5A*4

Rated voltage: 300V

Application: Power,Electrical equipment,Outdoor LED Display / Lighting
