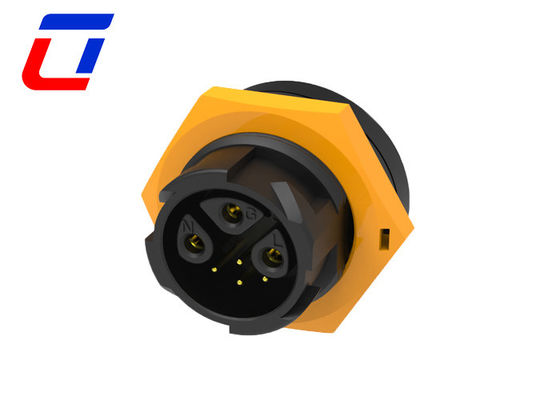

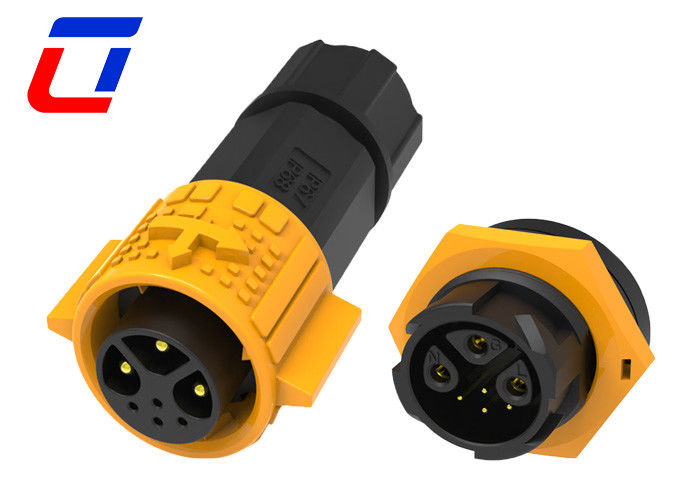

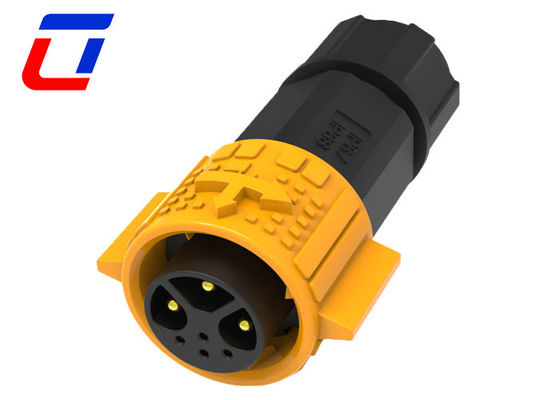

Push Lock Wire To Board Multi Pin Connectors Waterproof 3+4 Pin For Power Signal

M19 Push Lock 3+4 Pin Wire To Board Multi Pin Connectors Waterproof For Power Signal

Quick Description

This model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Main Features

• Item Name : M19 Waterproof Cable Connector
• Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
• Coupling way: Self-locking
• Pins number :2-22 pins
• Plug : Assembly type and Injection type available
• Socket: Front Mount, Back Mount, PCB Mount
• Waterproof grade: IP67/ IP68
• Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
• Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
• Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm”16.5 mm
• Durability :3000 times
• Applicabletemperature: -40℃~105​

Design Sketch

FAQ

Q1:What is the MOQ ?

A1:Our MOQ is 1pcs.
Q2:When you ship my order?

A2:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q3:Can I have custom label?

A3:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
Q4: What certificate you have?
A4: CE RoHS UL TUV SAA are available.
