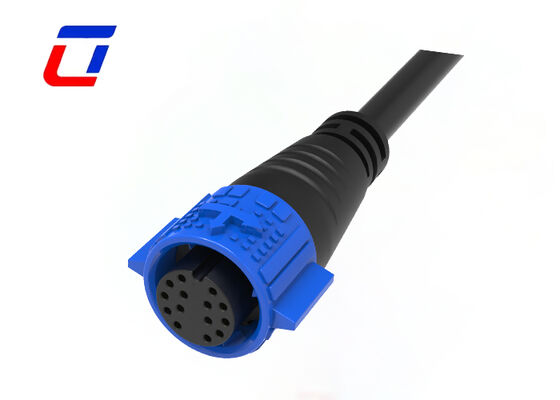

UL94-V0 M19 Waterproof Molded Cable Connector ODM 14 Pin Data Connector 5A

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin	Current Rating:	5A For Data
Material:	Nylon	Protection Level:	IP67 Waterproof
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40~+105℃
Highlight:	UL94-V0 waterproof cable connector , 14 pin data connector 5A , molded cable connector with warranty

UL94-V0 M19 Waterproof Molded Cable Connector ODM 14 Pin Data Connector 5A

Product Overview

This UL94-V0 M19 waterproof molded cable connector features a 14-pin configuration with 5A rating, designed for reliable multi-channel data transmission in demanding industrial environments.

UL94-V0 Flame Retardancy: High flame retardant rating ensures self-extinguishing properties for enhanced safety in industrial equipment
14-Pin Multi-Channel Design: Supports multi-channel data transmission with 5A rated current, reducing port requirements and simplifying internal harness layout
Molded Cable Integration: Superior waterproof and dustproof performance with IP67 rating, ideal for outdoor and humid workshop applications
Gold-Plated Brass Contacts: Low contact resistance with excellent oxidation and corrosion resistance for stable signal transmission
ODM Customization: Custom cable specifications, lengths, terminal crimping methods, and logo marking available

Key Features

Push lock quick release system for stable connection and convenient operation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
Combined power signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions available for wire-to-wire and wire-to-board applications
Current rated 20A for continuous operation
Cable assembly service supported
OEM/ODM customization welcome

Technical Specifications

Electrical Parameters
Number of Poles	14Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: What is rated Current?

A: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
