Brass Gold-Plated M19 300V 15A 6 Pin Male Female CE Push Lock Data Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	15A Max	Rated Voltage:	300V
Color:	Red Blue White Black Yellow	Connecting Type:	Plug&Socket
Contact Material:	Brass Gold-Plated	Flame-resistant Rating:	UL94-V0
Highlight:	Brass gold-plated M19 connector , 300V 15A push lock connector , CE waterproof data connector

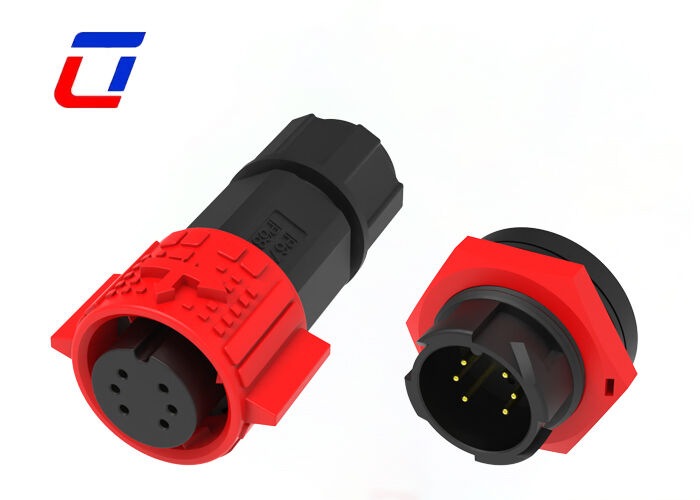

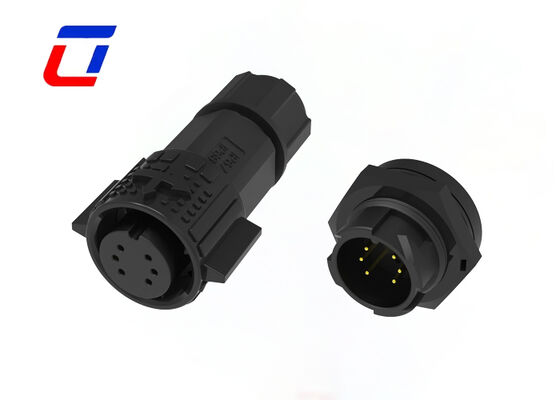

Brass Gold-Plated M19 300V 15A 6 Pin Male Female CE Push Lock Data Connector

Product Overview

Industrial sensors, automation control modules, testing instruments, intelligent equipment, integrated waterproof connection for power and data signals.

Key Features

Brass gold-plated contacts for superior conductivity with low contact resistance, anti-oxidation and anti-corrosion properties
M19 6Pin layout rated for 15A & 300V, supporting simultaneous power delivery and multi-channel data transmission
CE certified for export compliance with EU electrical standards
Dependable sealing with IP67 rating for industrial environments, protecting against dust, condensation and splashing water
Matched male & female set for easy assembly with precise mating for cable harness and panel mounting

Technical Specifications

Electrical Parameters

Number of Poles	6Pin waterproof connector
Current Rating	15A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Additional Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for power
3+2, 3+3, 3+4, 3+5, 2+20Pin power and signal combinations
9Pin, 10Pin, 12Pin, 14Pin, 16Pin, 18Pin for signal
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 15A continuous operation
Cable assembly service supported
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Q2: What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

Q3: How can I get samples?

It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
