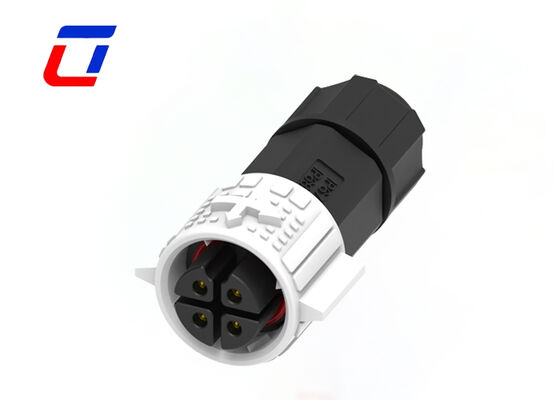

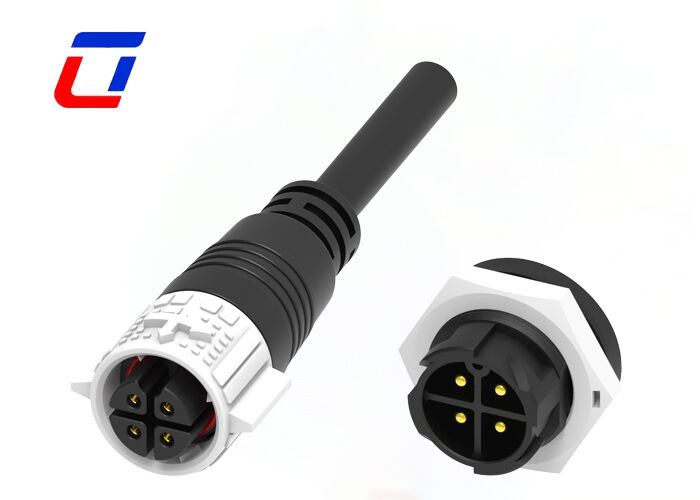

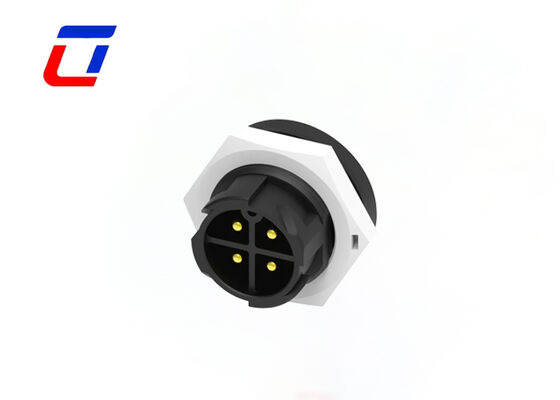

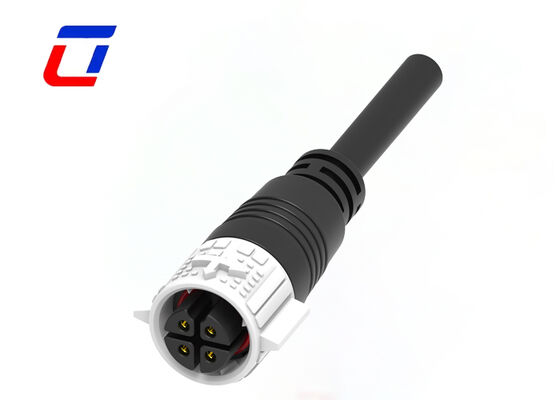

Name: M19 15A 4 Pin DC Power Connector Plastic PA66 Waterproof Wire To Board Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Power Connector

M19 15A 4 Pin DC Power Connector Plastic PA66 Waterproof Wire To Board Quick Connector

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A Max	Rated Voltage:	300V
Material:	Nylon&Brass Gold-Plated	Flame-resistant Rating:	UL94-V0
Operating Temperature:	-40~+105℃	Color:	Red Blue White Black Yellow
Highlight:	M19 waterproof power connector , 4 pin DC quick connector , PA66 plastic wire connector

M19 15A 4 Pin DC Power Connector Plastic PA66 Waterproof Wire To Board Quick Connector

Product Overview

M19 4-pin layout specifically designed for DC power transmission with 4-contact pin arrangement. Features simplified wiring layout for internal power access and streamlined power harness of equipment.

15A Rated Current: Stable high-power delivery with gold-plated brass contacts featuring low contact resistance and minimal heat generation
PA66 Engineering Plastic Housing: Flame retardant, durable material with excellent toughness, impact resistance, and anti-aging performance
Waterproof Sealing Design: Built-in sealing gasket provides reliable IP67 protection against dust, condensation, and splashing water

Main Features

Push lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version: both wire to wire and wire to board options
15A current rating for continuous operation
Cable assembly service supported with custom options
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

H*n

United Kingdom Dec 3.2025

Helpful (1971)

Really pleased with these waterproof connectors. They’re well-designed, easy to install, and the waterproof seal works perfectly even in damp UK weather. No corrosion or loose connections so far. The seller was helpful from start to finish—answered all my queries quickly and kept me updated on delivery. Great quality, great service, will buy again.

P*z

Spain Sep 6.2025

Helpful (9746)

No teníamos claros los modelos adecuados para nuestros proyectos. El equipo de preventa nos guió pacientemente para elegir el conector adecuado según el escenario de uso, evitando errores de compra.

O*l

Finland Jul 25.2025

Helpful (1409)

I’m really impressed with the quality of these connectors. They fit tightly, install easily, and have zero water leakage so far. The seller was responsive and helpful both before and after my purchase. Highly recommended!
