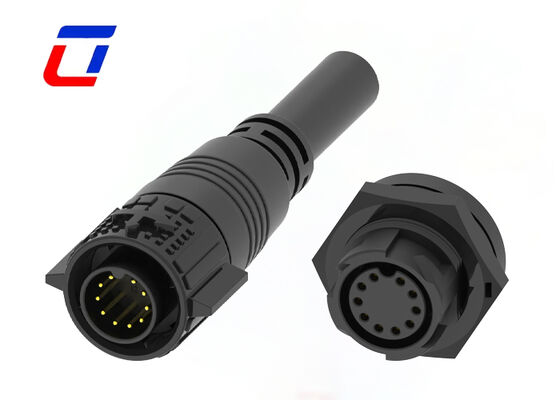

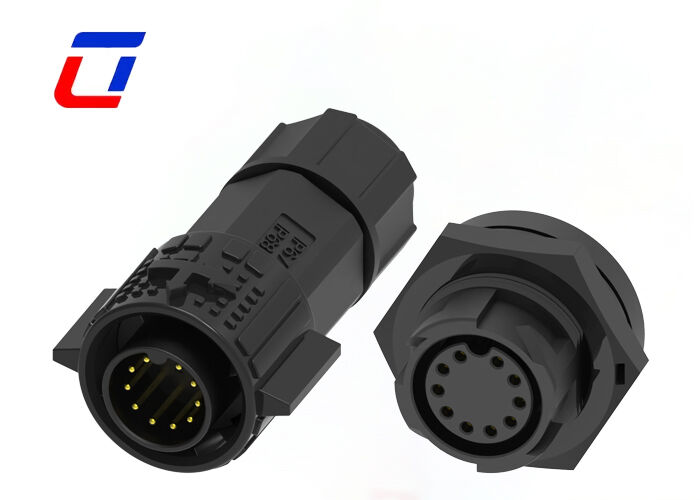

RoHS Compliant Plug And Socket Connectors 300V Push Locking M19 IP67 Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin Number:	10 Pin	Current Rating:	5A
Rated Voltage:	300V	Type:	Push Lock Plug&Socket
Contact Material:	Brass Gold-Plated	Mounting Type::	Panel Mount
Highlight:	RoHS compliant M19 IP67 connector , waterproof push locking connector , 300V plug and socket connector

RoHS Compliant Plug And Socket Connectors 300V Push Locking M19 IP67 Connector

Product Overview

10Pin RoHS Compliant Plug And Socket Connectors 300V Push Locking M19 IP67 Connector

Key Features

IP67 high-grade waterproof and dustproof protection with multi-layer sealing gaskets
Rated voltage 300V for both power supply and signal transmission
RoHS compliant for global export markets
High-strength flame-retardant PA66 housing for long service life
Matched plug & socket set for easy assembly and installation

Electrical Parameters

Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application Industries

Growth Lights Communications Application Product Coding Machines Inventory Product Coding Inkjet Systems Solar System Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Communications Equipment Heavy Machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch
