20A Industrial Obtain UL certification Circular Connector 3+4Pin Waterproof M19 Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	3+4Pin Power&Data	Current Rating:	15+5A
Rated Voltage:	300V	Material:	Nylon
Protection Level:	IP67 Waterproof	Operating Temperature:	-40~+105℃
Highlight:	20A Industrial M19 Connector , UL certified waterproof circular connector , 3+4Pin waterproof M19 connector

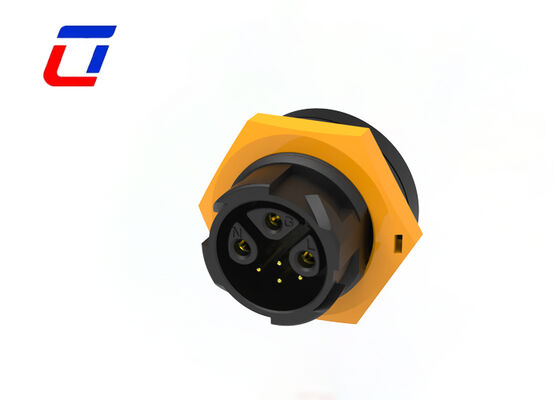

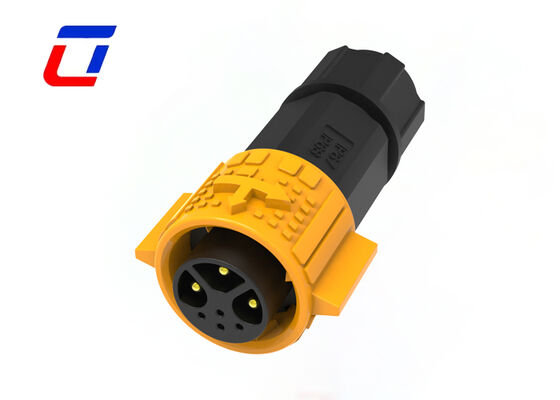

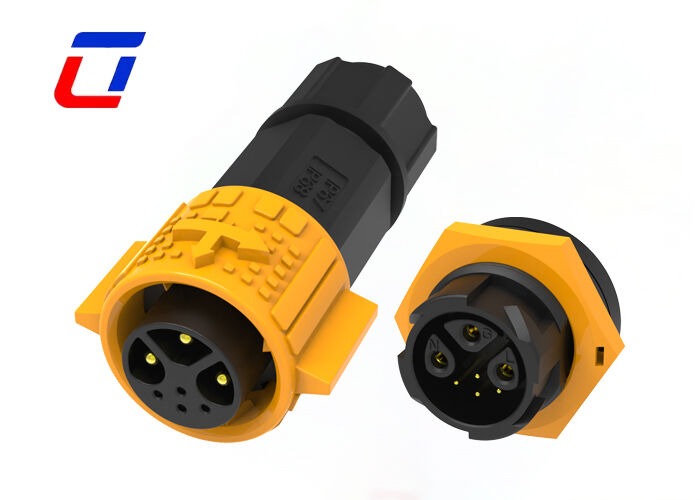

20A Industrial UL Certified Circular Connector 3+4Pin Waterproof M19 Connector

Product Overview

This M19 3+4Pin industrial circular waterproof connector is specially designed for integrated power supply and signal transmission of industrial equipment. It features a 3-pin power + 4-pin signal split pin structure with a rated current of 20A. Certified by authoritative UL safety standards, it offers excellent waterproof, dustproof, anti-interference and aging resistance performance. This high-reliability connection solution is ideal for outdoor and harsh industrial environments including industrial automation and smart equipment applications.

Key Features

UL Certified & Fully Compliant - UL safety certified with UL94 V-0 flame retardant grade, compliant with RoHS and CE standards for global export
3+4Pin Split Design - Combined 3 power pins + 4 signal pins for simultaneous 20A high-power supply and stable signal transmission
20A High Current Capacity - Rated working current of 20A and voltage of 300V with gold-plated brass conductive pins
IP67 Waterproof & Dustproof - Multi-layer sealing rubber ring locking structure resistant to rainwater, dust, and oil pollution

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Technical Specifications

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q: How do you guarantee product quality?

A: We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
