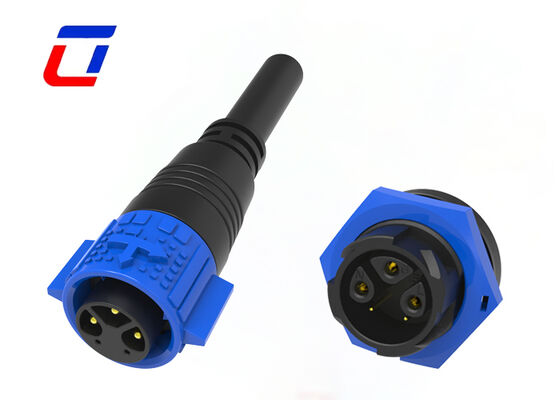

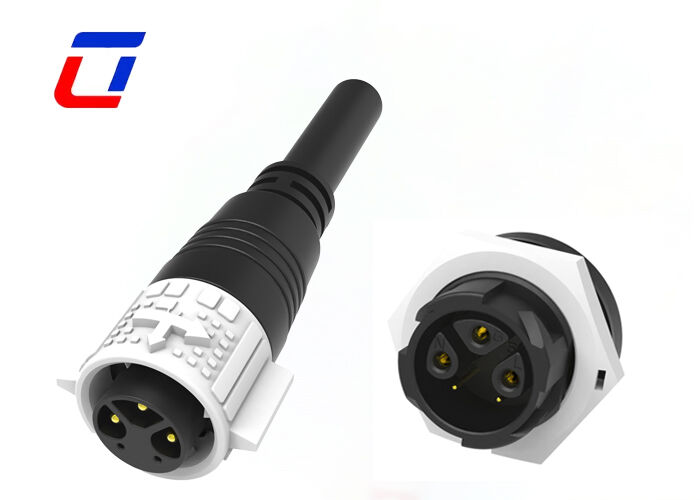

600V IP67 Connector 3+2 Pin M19 Brass Gold-plated Power Signal connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+2PIN Power&signal	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Color:	Black Blue
Housing Material:	PA66	Flame-resistant Rating:	UL94-V0
Highlight:	600V IP67 waterproof connector , M19 brass gold-plated connector , 3+2 pin power signal connector

600V IP67 Connector 3+2 Pin M19 Brass Gold-plated Power Signal connector

Product Overview

600V High Voltage Rating With Enhanced Electrical Isolation: Rated up to 600V with internal insulating barriers that increase creepage distance to prevent breakdown and leakage. Designed for energy storage and industrial power systems.
3+2 Hybrid Pin Design Integrates Power And Signal: 3 power pins transmit high-voltage power while 2 signal pins feed back equipment status data, reducing panel openings and simplifying wiring.
Brass Base with Gold Plating For Conductivity & Corrosion Resistance: High-conductivity brass substrate with gold plating maintains stable low contact resistance and strong anti-oxidation performance.
Thread-Free Push-Lock Improves Safety For High-Voltage Maintenance: Push to lock and press to release without threaded rotation. Tool-free connection speeds up maintenance and prevents accidental disconnection.
IP67 Multi-Layer Sealing For All-Terrain Protection: Dual silicone gaskets form a sealed barrier against rain, condensation and dust for outdoor or humid workshop operation.
Integrated Insulated Housing For Industrial Integration: High-strength impact-resistant and anti-aging insulating shell supports panel mount and wire-to-wire assembly.

Main Features

Push lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire-to-wire and wire-to-board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Specification Category	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	IP67 (Dust Level 6)
Operating Temperature	-40°C to 105°C
Durability Rating	250-251 Cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimension

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends on the connector insulation material and contact spacing. Some components may not function properly below their rated voltage.

Q2: Is there a discount for large-quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please provide your expected quantity for a customized quotation.

Q3: Can I have custom label?

A3: Yes, of course. You can create your own private label and packaging. If you need packaging design, we also have professional designers to serve you.
