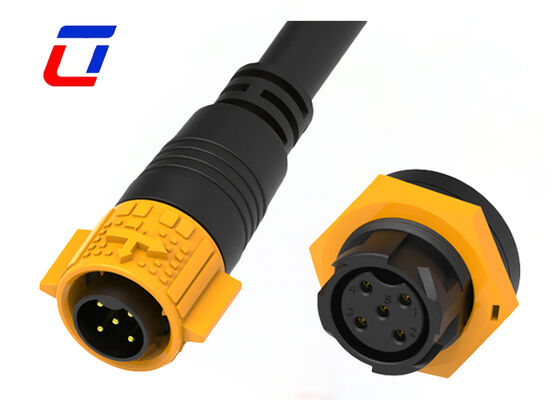

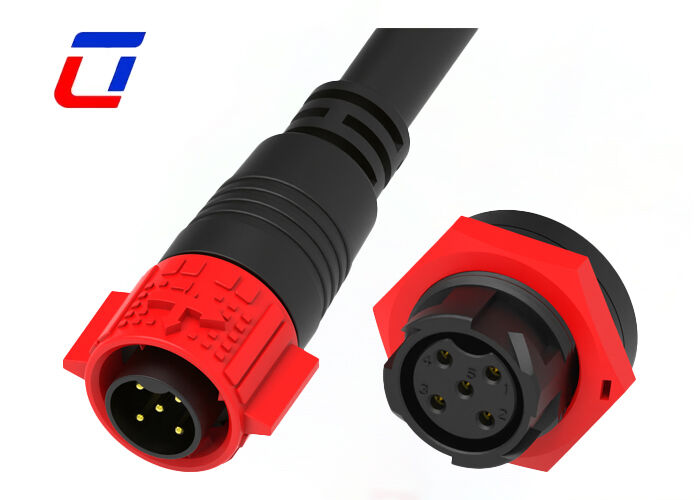

Name: 20A 300V M19 IP67 Solar Power Connectors Push Lock 5 Pin Male Female Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Power Connector

20A 300V M19 IP67 Solar Power Connectors Push Lock 5 Pin Male Female Plug Socket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,Rohs,TUV,UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	5Pin For Power	Rated Voltage:	300V
Flame-resistant Rating:	UL94-V0	Operating Temperature:	-40℃~+105℃
Material:	PA66,Nylon	Contact Material:	Brass Gold-Plated
Highlight:	20A 300V solar power connectors , M19 IP67 waterproof plug socket , 5 pin male female power connector

20A 300V M19 IP67 Solar Power Connectors Push Lock 5 Pin Male Female Plug Socket

Product Overview

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Description

This M19 5-pin circular connector is made of high-strength PA66 material, supporting 300V high-voltage transmission. The male-to-female docking design combined with reliable waterproof performance makes it an ideal choice for multi-scenario power connections.

Performance focuses on high voltage and protection: high-conductivity copper pins reduce transmission loss, and the 300V rated voltage is compatible with high-voltage equipment; IP67 waterproof and dustproof, not afraid of rain and dust.

The male-to-female structural design is user-friendly: M19 specification with foolproof alignment to avoid wrong insertion; PA66 housing resists temperature from -40℃ to 105℃, suitable for harsh environments.

Electrical Parameters

Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

1. Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

2. Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
