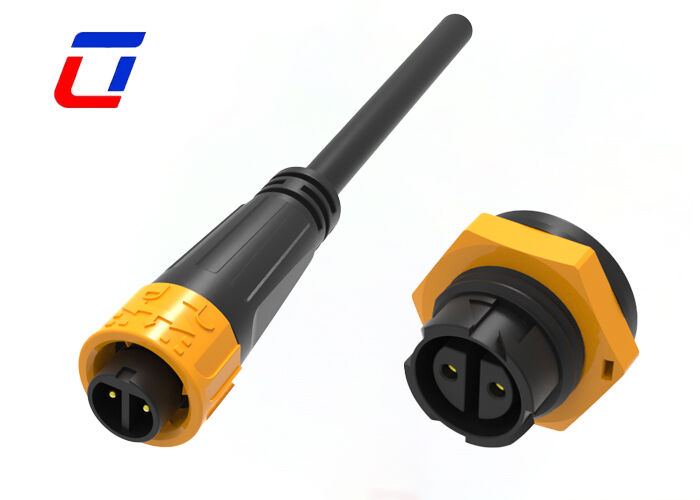

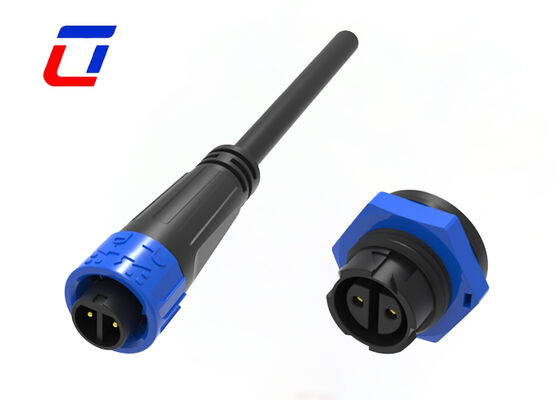

Name: 10A 300V 2 pole cable connector M16 quick lock waterproof Outdoor Electronics connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Power Connector

10A 300V 2 pole cable connector M16 quick lock waterproof Outdoor Electronics connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	10A Max. For Power	Rated Voltage:	300V
Waterproof Rating:	IP67	Flame-resistant Rating:	UL94-V0
Specific Application Scenarios:	Outdoor Lighting Fixtures	Mounting Type:	Molded Wire / Panel Mount
Highlight:	10A 300V waterproof power connector , M16 quick lock cable connector , 2 pole outdoor electronics connector

10A 300V 2 Pole Cable Connector M16 Quick Lock Waterproof Outdoor Electronics Connector

Industrial waterproof circular connector designed for reliable outdoor electronic applications. Features 2-pin power design with push-lock quick connection system and IP67 protection rating.

Key Features

2-Pole Power Design: Dual power contacts rated at 10A and 300V for stable current transmission and low temperature rise
Thread-Free Push-Lock Quick Connection: Tool-free fast mating and disconnection with push-lock self-locking design
IP67 All-Weather Protection: Precision sealing for dust protection and splash resistance against rain and condensation
Weatherproof Housing: High-strength plastic housing with UV resistance and wide temperature tolerance
Wire-to-Wire Connection: Male-female cable-to-cable connection for flexible installation without PCB requirements
Compact M16 Design: Suitable for outdoor electronic equipment, garden lighting, and small electrical devices

Main Features

Push lock quick easy release system
Multi-core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector for prolonged operation up to 10A
Cable assembly services provided with customization options
OEM/ODM partnerships accepted

Electrical Parameters

Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: How can I get samples?

A1: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier number and detailed address, and we will dispatch samples immediately.

Q2: Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3: What is rated Current?

A3: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
