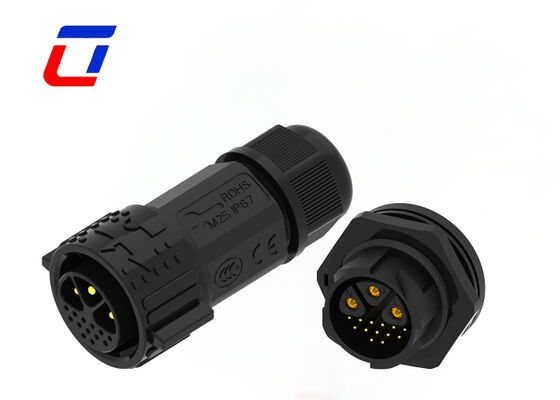

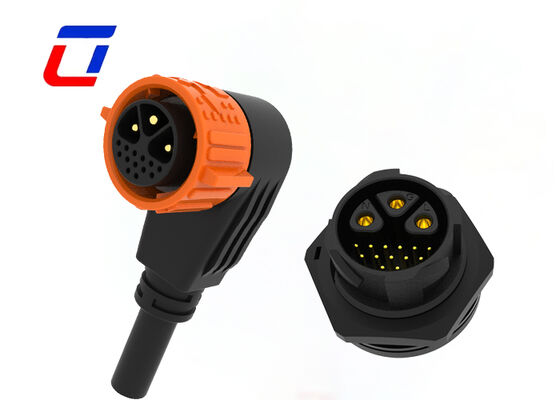

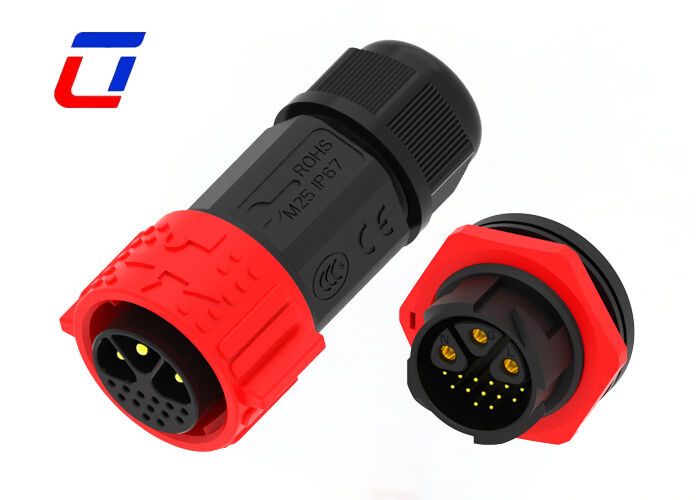

300V 20A M25 16Pin Outdoor Waterproof Plug Socket Connector

Product Overview

This M25 3+13Pin outdoor waterproof plug and socket features rated voltage 300V. 3 power contacts rated at 15A per pin and 13 signal contacts rated at 5A per pin. The housing is made of high-performance flame-retardant engineering plastic with wide temperature resistance, UV resistance and vibration & impact resistance. Gold-plated brass contacts deliver great conductivity and strong anti-interference performance, avoiding loosening and poor contact after long service. Widely used in outdoor lighting projects, industrial control devices, intelligent equipment, photovoltaic systems and outdoor display screens.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Specifications

3+13 Hybrid Pin Layout, Integrated Power & Signal Transmission: Combination of 3 high-power pins +13 multi-signal pins, 15A for power, 5A for signal and rated voltage up to 300V. One connector realizes power supply and multi-channel communication, cutting cable usage and wiring cost.
Thread-Free Push-Lock Quick Connection: Push-lock self-locking design for tool-free mating & disconnection. Simple assembly improves on-site construction efficiency, ideal for mass project installation and later maintenance.
IP67 All-Weather Outdoor Protection: Precision sealing design, dust-tight and resistant to temporary water immersion and splash. It protects against dust, moisture and oil contamination for stable operation in open-air sites and humid workshops.
Reliable Gold-Plated Contacts for Stable & Low-Interference Signal: Separated power and signal contacts isolate strong and weak current. Gold-plated contacts feature excellent conductivity and oxidation resistance to prevent crosstalk and guarantee steady multi-signal communication.
Weatherproof Flame-Retardant Housing for Long Service Life: Flame-retardant plastic housing with wide temperature tolerance, UV resistance and shock resistance. It will not crack or fade easily under long-time outdoor sunlight and rain, suitable for continuous operation.
Direct Supplier from China with Customization Available: Professional domestic IP67 waterproof connector manufacturer with stable stock. We provide plug & socket, overmolded cable, wire-to-board solutions and OEM/ODM service with reliable lead time.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC)	300V max.
Operating Voltage (VDC)	300V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application, product coding machines, inventory product coding, inkjet systems, Solar System, industrial inkjet equipment, Electric power equipment, Laboratory forensic & pathology equipment, Communications equipment, Heavy machinery
