Name: 20A M25 LED Quick Connector 3 Power 3 Signal Multi Pin Male Female IP67 Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Price: Negotiable USD
Availability: InStock

Home Products Waterproof LED Connector

20A M25 LED Quick Connector 3 Power 3 Signal Multi Pin Male Female IP67 Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,RoHs,TUV,UL
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+3PIN	Current:	15A+5A
Temperature Range:	-40℃~+105℃	Housing Material:	PA66
Flame-resistant Rating:	UL94-V0	Application:	Smart Home/Industrial Sensors
Highlight:	20A M25 LED waterproof connector , 3 power 3 signal multi pin connector , IP67 male female LED connector

20A M25 LED Quick Connector 3 Power 3 Signal Multi Pin Male Female IP67 Connector

Product Overview

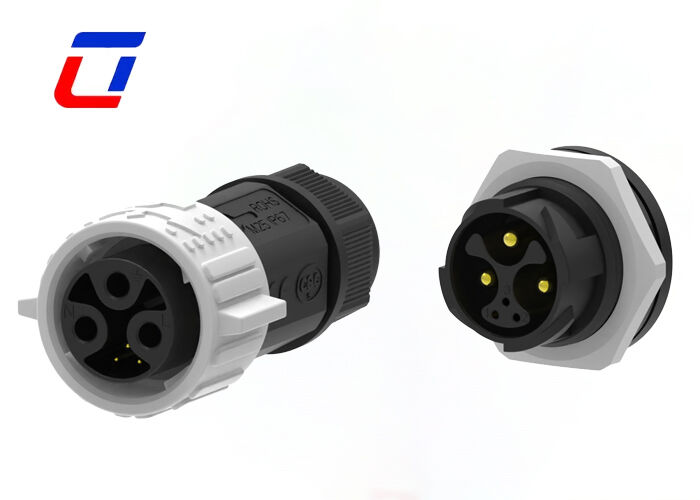

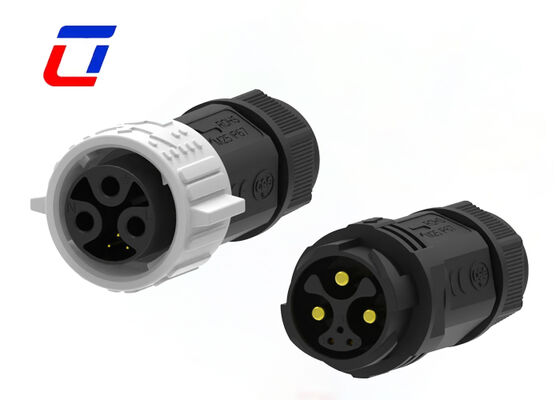

This M25 multi-pin LED quick connector features an integrated design with 3 power pins + 3 signal pins. Power contacts are rated at 15A and signal contacts at 5A, supplied as male and female pairs. Specifically developed for outdoor LED lighting equipment, it delivers high-power power supply and control signals simultaneously for integrated power & signal transmission.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Feature Category	Specifications
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Contact Current Rating (Max)	15A + 5A max.
Circular Connector Contact Type	Pin-Socket
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Key Product Benefits

Integrated Power & Signal 2-in-1 Design

3 power + 3 signal 6-pin combination. 15A high-current power supply together with 5A signal transmission. One connector handles both power and light control, reducing wiring quantity and simplifying wiring solution for LED projects.

Thread-Free Push-Lock Quick Connection

Push to lock, tool-free fast plugging. Easy assembly and disassembly, greatly cutting on-site construction time for lighting projects, ideal for mass installation and maintenance of lamps.

IP67 All-Weather Waterproof & Dustproof

High-precision sealing structure protects against rain splash, condensation and dust. Stable performance in open-air outdoor environments and prevents electric leakage and short circuit.

Stable Transmission with Low Signal Interference

Separated power and signal pins isolate strong & weak current to reduce crosstalk. Ensure stable LED dimming and synchronous control signals for consistent lighting.

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
