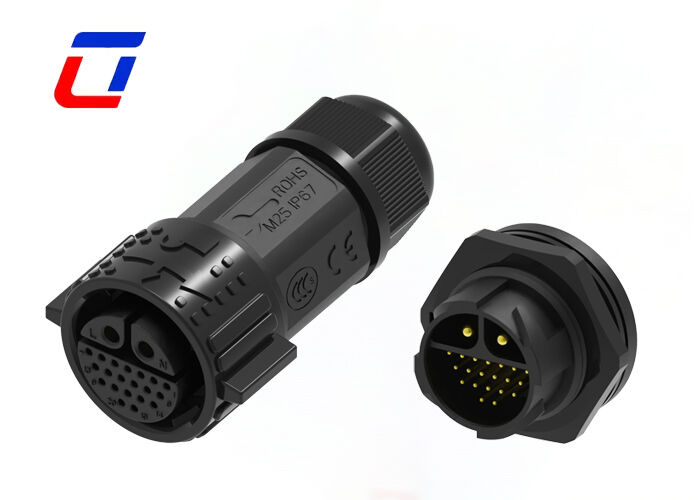

Name: UL94-V0 M25 20A+5A Signal And Power Connector Push Lock IP67 Connector 2+20 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Price: Negotiable USD
Availability: InStock

Home Products Waterproof LED Connector

UL94-V0 M25 20A+5A Signal And Power Connector Push Lock IP67 Connector 2+20 Pin

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2+20 Pin	Contact Material:	Brass Gold-Plated
Temperature Range:	-40℃~+105℃	Color:	Red/Blue/Green
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	UL94-V0 M25 waterproof connector , 20A+5A push lock connector , IP67 signal and power connector

UL94-V0 M25 20A+5A Signal And Power Connector Push Lock IP67 Connector 2+20 Pin

This M25 2+20 Pin Push Lock Waterproof Connector is engineered for integrated connection scenarios requiring both signal transmission and power supply. It combines 2 high-power terminals and 20 precision signal terminals, enabling synchronous transmission of power and data communication in a single unit.

Rated at 20A for power current and 5A for signal current, this connector delivers stable current carrying capacity suitable for most industrial equipment, intelligent terminals, and outdoor applications.

Key Features

Push Lock Quick Connection: Easy plug-and-unplug operation with firm locking mechanism, requiring no tools for rapid installation and maintenance.

IP67 Protection: Complete protection against dust, rainwater, humidity, and oil contamination for reliable performance in challenging environments.

UL94-V0 Flame Retardant: Excellent flame self-extinguishing properties with high temperature resistance and aging protection for enhanced safety.

Vibration Resistant: Stable structure ensures reliable connectivity and excellent electrical conductivity, preventing signal interference and power attenuation.

Application Industries

Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Industrial Inkjet Equipment

Technical Specifications

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A + 5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material and spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

Can I have custom label?

Yes, of course. You can create your own private label and packaging. If you need packaging design services, we have professional designers available to assist you.
