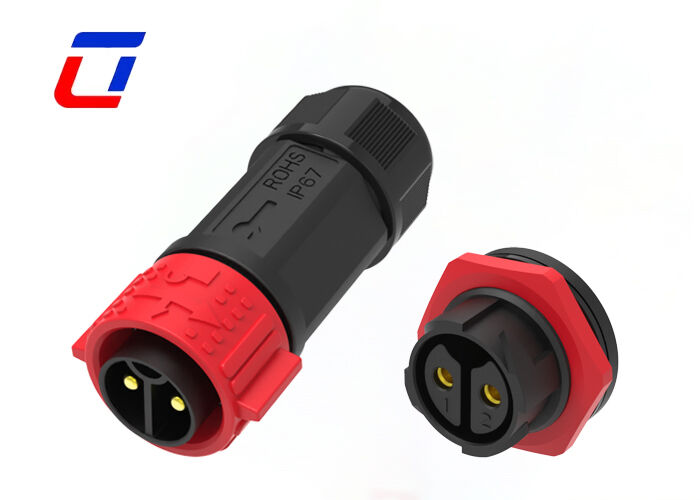

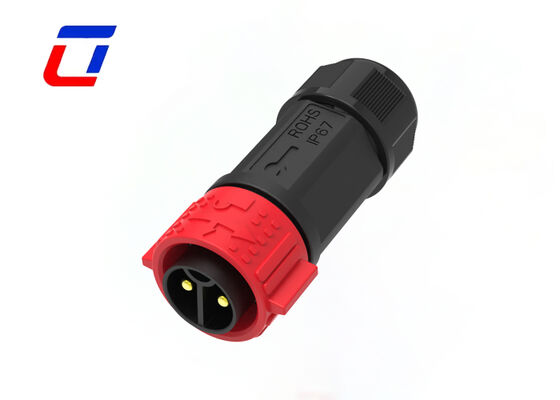

50A High Current PA66 2 Pin Panel Mount Power Connector Push Lock 600V Round Connectors

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	2 Pin	Current:	50A Max
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	50A high current panel mount connector , PA66 2 pin power connector , 600V waterproof round connectors

50A High Current PA66 2 Pin Panel Mount Power Connector Push Lock 600V

Product Overview

M25 2 Pin Waterproof DC Power Connector 50A Wire To Board Connectors

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Description

2-Pin Pure Power Transmission Design: Adopting a streamlined 2-pin single-circuit layout exclusively for power transmission, it features no signal channel interference. It delivers balanced and stable current output, perfectly adapting to 600V high voltage and 50A high-current continuous power supply, effectively avoiding current disorder and power fluctuation for equipment main circuit power connection.
600V/50A High Voltage & Heavy Load Performance: Rated for 600V high voltage and 50A large current with sufficient electrical safety margin. Built with thickened high-purity copper terminals, it features large conductive area, low contact resistance and low temperature rise. It supports long-term full-load operation without overheating or poor contact, ensuring stable and reliable power supply for industrial heavy-load equipment.

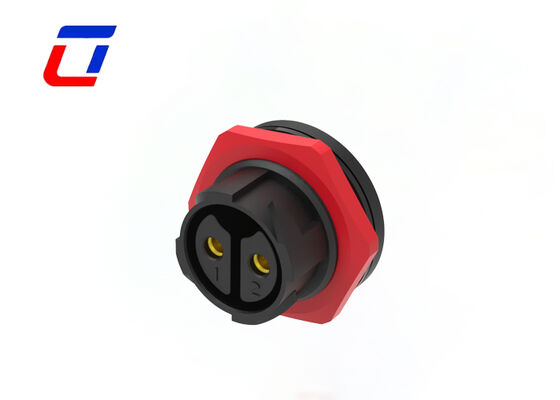

Stable Panel Mount Installation Structure: Featured with professional panel mount design, the connector can be firmly embedded and fixed on equipment chassis and electric control panels. The embedded installation optimizes internal wiring layout, saves external space, realizes standardized integrated assembly, and is highly compatible with various electromechanical and electric control equipment.
Premium PA66 Flame-retardant Insulated Housing: One-piece injection molded with modified industrial PA66 nylon, the housing boasts high rigidity, strong impact resistance and excellent compression resistance. With outstanding high-voltage insulation, UL94 V0 flame retardancy and weather resistance, it prevents electric leakage, short circuit and breakdown, adapting to harsh industrial environments for long-term service.

Electrical Parameters

Number of Poles	2Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max. Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How many materials you can provide?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
